CPE-4104

  • 10/100Mbps PoE ports
  • Uplink port
  • IEEE 802.3af/at
  • Protection: Excellent anti thunder, anti static and anti-Interference
  • Product description: 5 Ports 10/100 Switch with 4 Ports POE, 4x 10/100Mbps PoE ports, 1x uplink port; with External 52V 1.25A 65W or External 52V 2.3A 120W Power Supply optional
  • INQUIRY   EMAIL

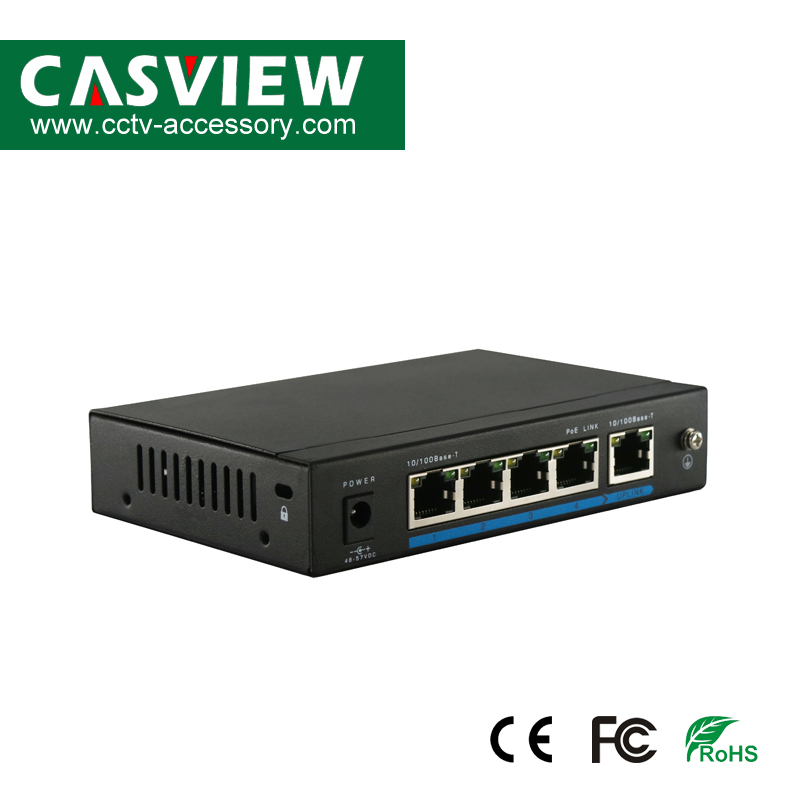

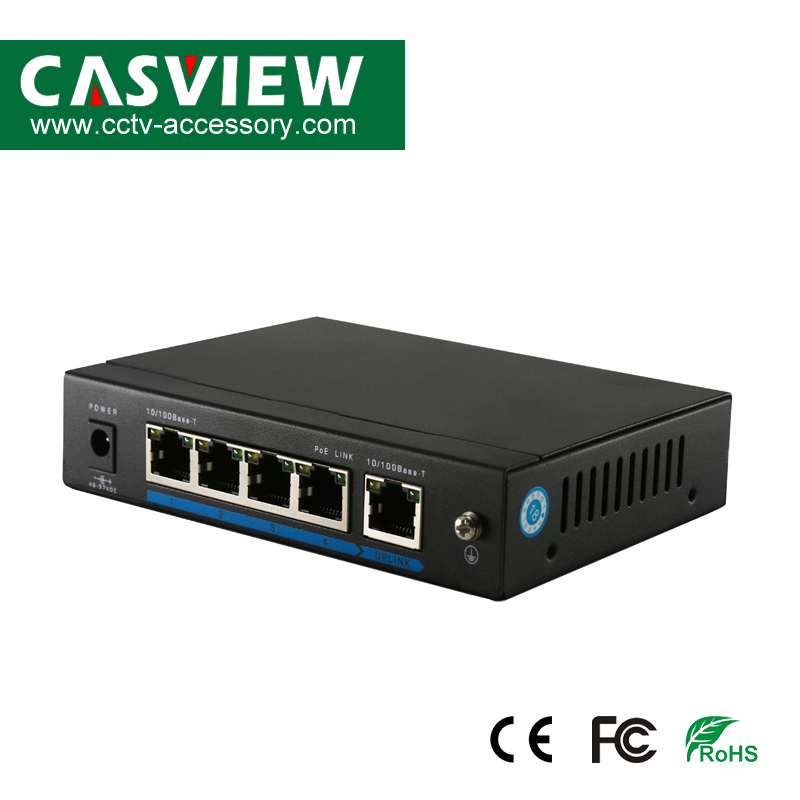

5 Ports 10/100 Switch with 4 Ports POE

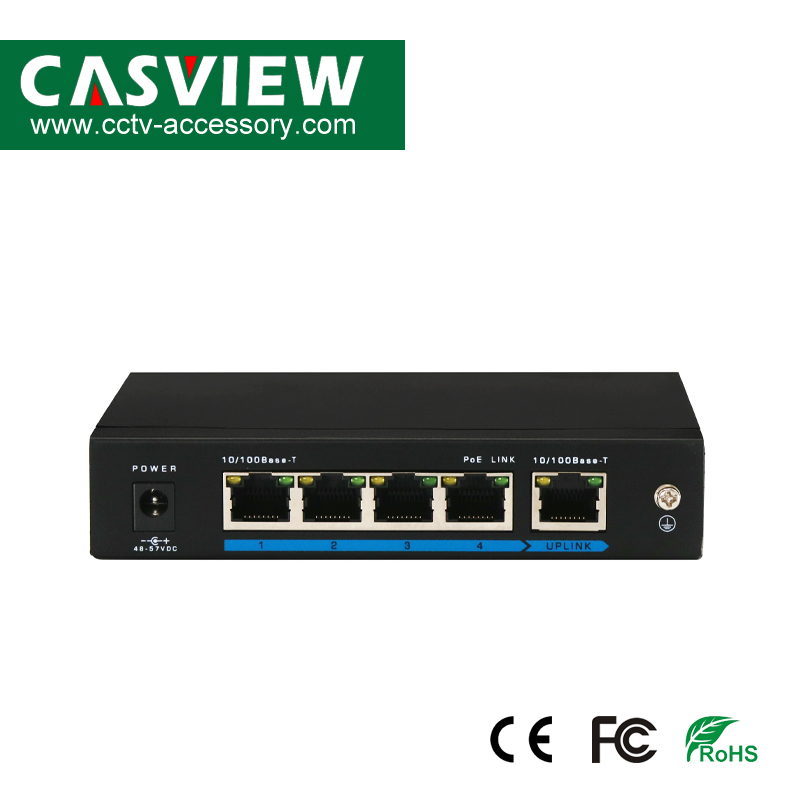

4x 10/100Mbps PoE ports, 1x uplink port;

with External 52V 1.25A 65W or External 52V 2.3A 120W Power Supply optional
Supports port auto-flip (Auto MDI/ MDIX);
Maximum power of single PoE port: 25.4W;
Adopts store-and-forward architecture;
IEEE 802.3at power on up to 4 ports;

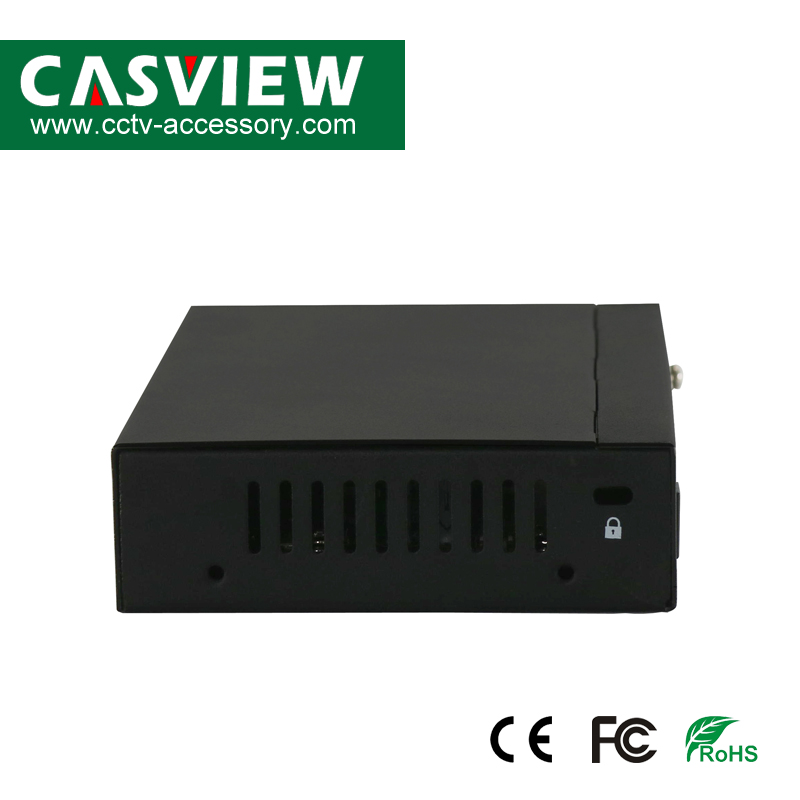

With anti-theft lock;
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and  1~4 downlink ports only able to commuunicate with uplink ports.
The communication distance extends to 250 meters;
Protection: Excellent anti thunder, anti static and anti interference;
External power supply, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

Description:
The 4 Port POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and  fluent transmission. The product support one key  camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Specifications:

Model CPE-4104
Power Power Adapter Voltage 48-57V
Consumption 120W
Network Connector Network port POE Ethernet Port 1~4 Port: 10/100Mbps
Ethernet Port Uplink Port: 10/100Mbps
Transmission Distance 1~4 Pot: 100Mbps:0~100m
10Mbps: 0 ~ 250m
Uplink Port: 1~100m
Transmission Medium Cat5/5e/6 standard network cable
Network Switch Network Standard IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switch Capacity 1Gbps
Packet Forwarding Rate 0.74 Mbps
MAC Table 1K
Power Over Ethernet POE Standard IEEE 802.3af
PoE Power Supply Type End-Span(1/2+;3/6-)
POE Power Consumption af=15.4W(every port)

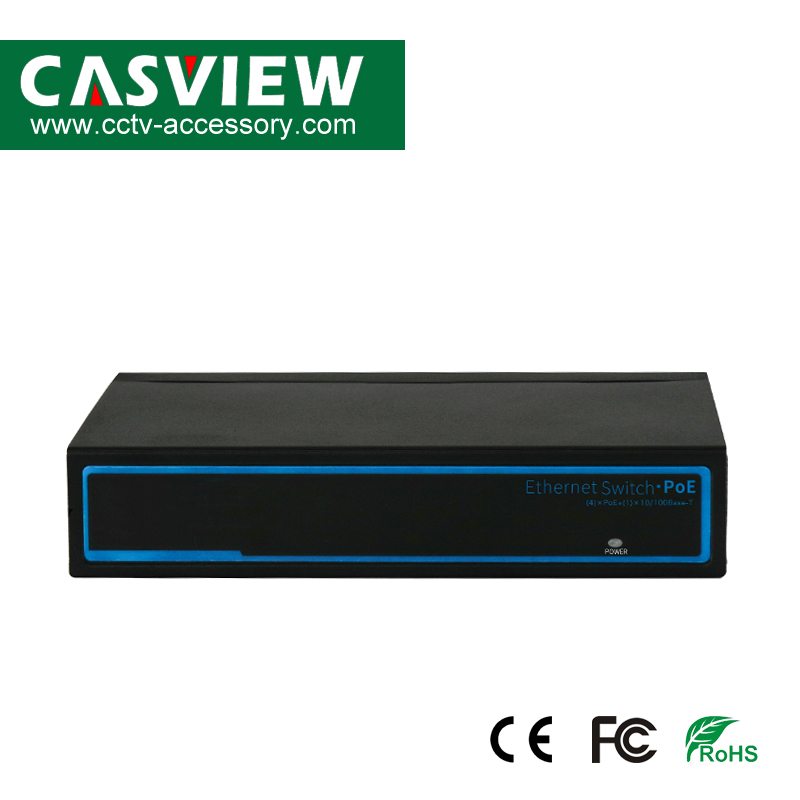

LED Status Indicator VLAN/Extend PoE Ethernet LED Indicator Indicator Power: 1 red light indicates that the power normal work;
POE: 4 yellow lights indicate that the POE is power on;
Ethernet: 5 green lights indicate that the Ethernet link and act;
Surveillance Module Ligh 1pcs(Green), green indicates Camera
Environmental Working temperature 0ºC~55ºC
Relative Humidity 20~95%
Storage Temperature -20ºC~70ºC
Mechanical Dimension (L×W×H) 135mm*89mm*27mm
Color Black
Weight 255g

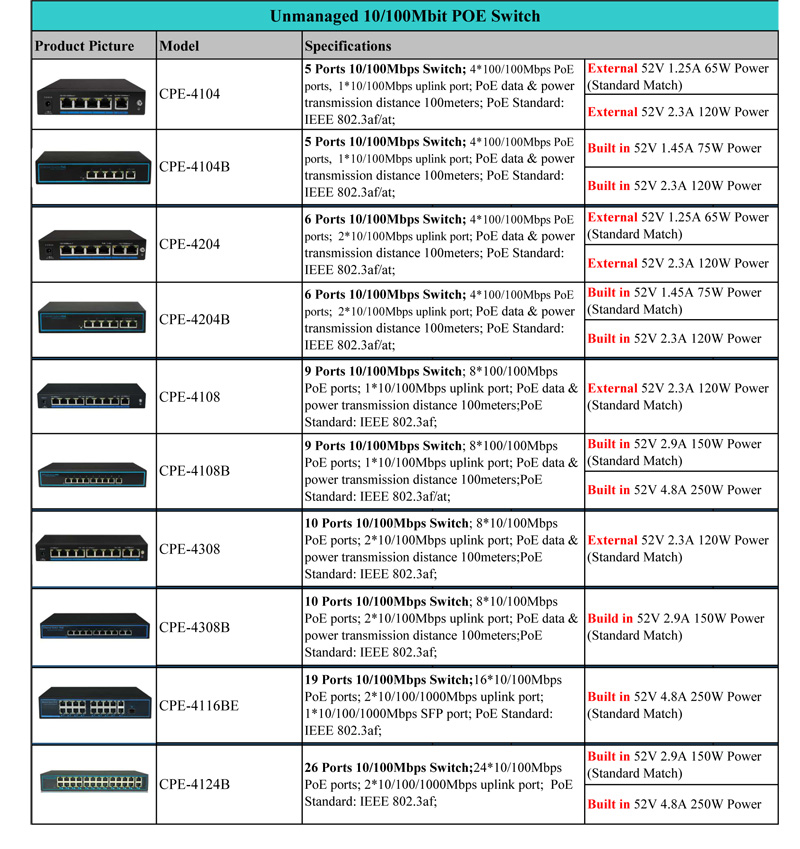

Optional Models:
