CPE-4104B

  • 10/100Mbps PoE ports
  • Uplink port
  • IEEE 802.3af/at
  • Protection: Excellent anti thunder, anti static and anti-Interference
  • Product description:
  • INQUIRY   EMAIL

5 Ports 10/100 Switch with 4 Ports POE
4x10/100Mbps PoE ports, 1x uplink port;

with Build-in 52V 2.3A 120W or Built in 52V 2.3A 120W Power Supply optional
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~4 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters;
Supports port auto-flip (Auto MDI/ MDIX);

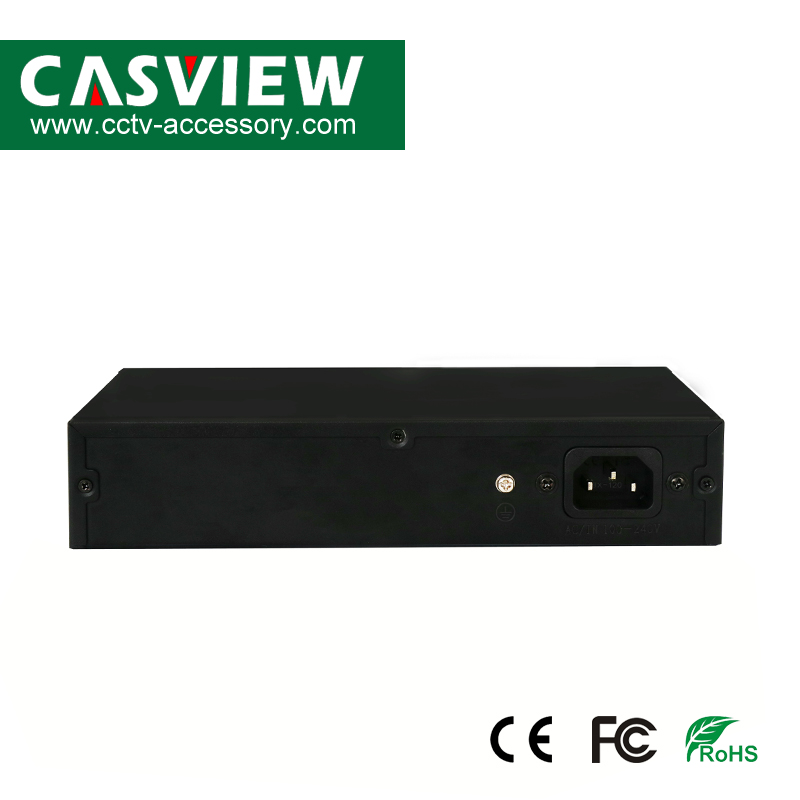

Built-in power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 75W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 4 ports;
Fanless, natural cooling, small , compact and quiet design, suitable for desktop or wal

Description:

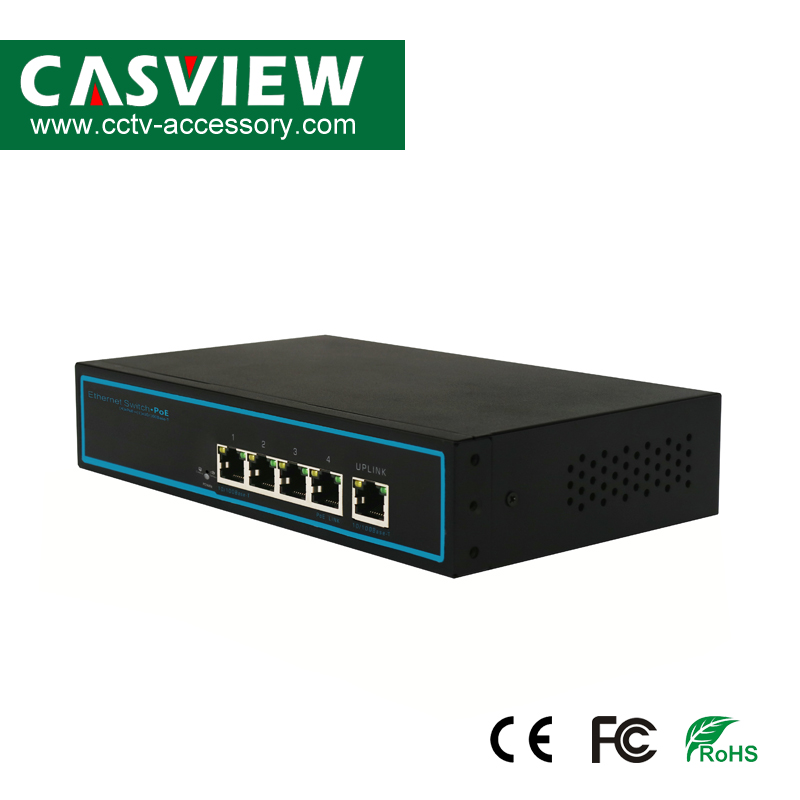

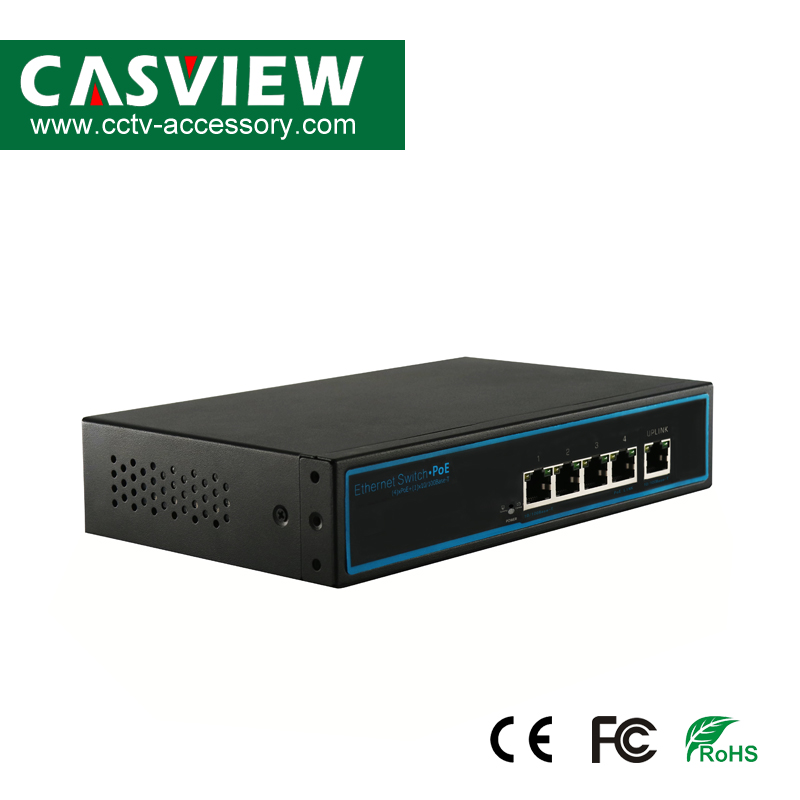

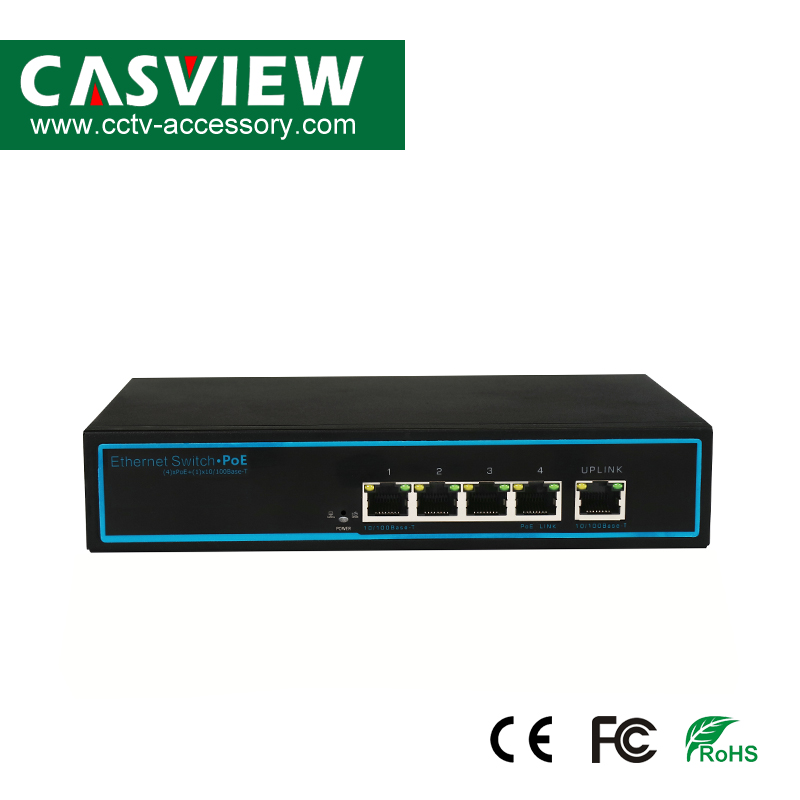

CPE-4104B is a compact 4+1 port Poe switch,with 4 10/100 Mbps PoE Ports, and 1 10/100Mbps Uplink Port,The 4 POE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD), such as VOIP phones,IP Cameras,All POE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.


Specifications:

Model CPE-4104B
Power Power Adapter Voltage 48-57V
Consumption 75W
Network Connector Network port POE Ethernet Port 1~4 Port: 10/100Mbps
Ethernet Port Uplink Port: 10/100Mbps
Transmission Distance 1~4 Pot: 100Mbps:0~100m
Uplink Port: 1~100m
Transmission Medium Cat5/5e/6 standard network cable
Network Switch Network Standard IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switch Capacity 1Gbps
Packet Forwarding Rate 0.74 Mbps
MAC Table 1K
Power Over Ethernet POE Standard IEEE 802.3af
PoE Power Supply Type End-Span(1/2+;3/6-)
POE Power Consumption af=15.4W(every port)
LED Status Indicator VLAN/Extend PoE Ethernet LED Indicator Indicator Power: 1 red light indicates that the power normal work;
POE: 4 yellow lights indicate that the POE is power on;
Ethernet: 5 green lights indicate that the Ethernet link and act;
Surveillance Module Ligh 1pcs(Green), green indicates Camera
Environmental Working temperature 0ºC~55ºC
Relative Humidity 20~95%
Storage Temperature -20ºC~70ºC
Mechanical Dimension (L×W×H) 201mm*120mm*41mm
Color Black
Weight 605g

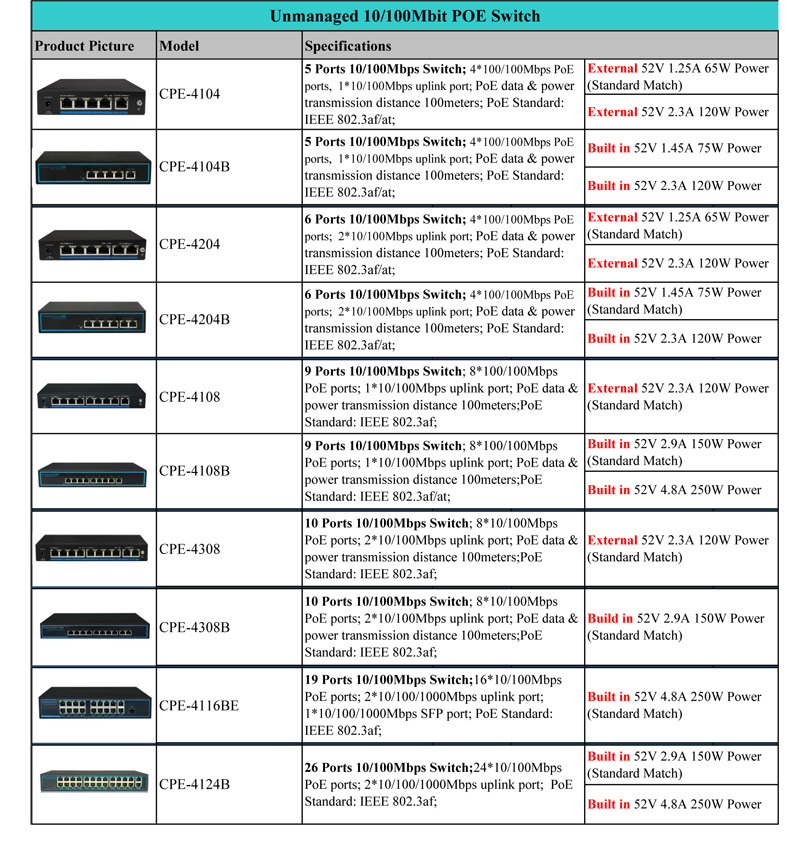

Optional Models:
