10/100Mbit POE Switch

CPE-4308

  • 10/100Mbps PoE ports
  • Uplink port
  • IEEE 802.3af/at
  • Protection: Excellent anti thunder, anti static and anti-Interference
  • Product description: 10 Ports 10/100Mbps Switch with External 52V 2.3A 120W Power Supply 8x 10/100Mbps PoE ports, 2*10/100Mbps uplink port
  • INQUIRY   EMAIL

10 Ports 10/100Mbps Switch; with External 52V 2.3A 120W Power Supply
8x 10/100Mbps PoE ports, 2*10/100Mbps uplink port;
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~8 downlink ports only able to communicate with uplink ports.
The communication distance extends to 250 meters;
Supports port auto-flip (Auto MDI/ MDIX);
External power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 120W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 8 ports;
Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

Description:
The 8 Port POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and  fluent transmission. The product support one key  camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Specifications:

Model CPE-4308
Power Power Adapter Voltage 48-57V
Consumption 120W
Network Connector Network port POE Ethernet Port 1~8 Port: 10/100Mbps
Ethernet Port Uplink Port: 10/100Mbps
Transmission Distance 1~8 Port: 100Mbps:0~100m
                 10Mbps:  0 ~ 250m;
Uplink Port: 1~100m
Transmission Medium Cat5/5e/6 standard network cable
Network Switch Network Standard IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switch Capacity 1.8Gbps
Packet Forwarding Rate 1.34Mbps
MAC Table 2K
Power Over Ethernet POE Standard IEEE 802.3af
POE Power Supply Type End-Span(1/2+;3/6-)
POE Power Consumption af=15.4W(every port)
LED Status Indicator VLAN/Extend PoE Ethernet LED Indicator Indicator Power: 1 red light indicates that the power normal work;
POE: 8 yellow lights indicate that the POE is power on;
Ethernet: 10 green lights indicate that the Ethernet link and act;
Surveillance Module Ligh 1pcs(Green), green indicates Camera
Environmental Working temperature 0ºC~55ºC
Relative Humidity 20~95%
Storage Temperature -20ºC~70ºC
Mechanical Dimension (L×W×H) 208mm*96m*27mm
Color Black
Weight 420g

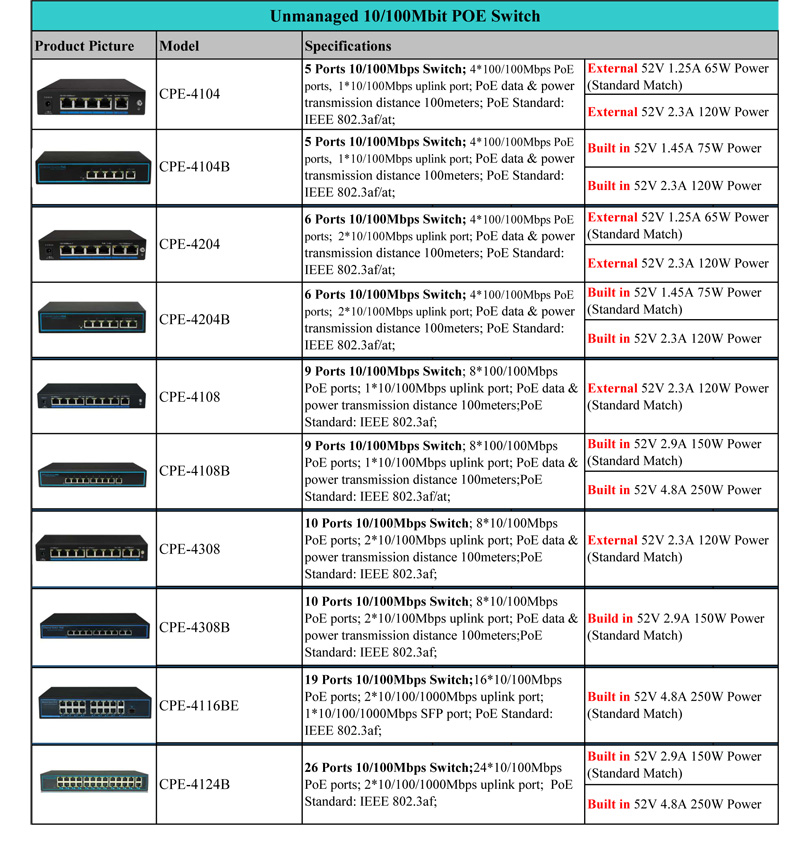

Optional Models:
