10/100Mbit POE Switch

CPE-4124B

10/100Mbps PoE ports
Uplink port
IEEE 802.3af/at
Protection: Excellent anti thunder, anti static and anti-Interference
Product description: 26 Ports 10/100Mbps Switch; 24*10/100Mbps PoE ports; 2*10/100/1000Mbps uplink port; PoE Standard: IEEE 802.3af;
INQUIRY EMAIL

24 Ports 10/100Mbps Switch, with Build-in 52V 2.9A 150W Power
24*100/100Mbps PoE ports; 2*10/100/1000Mbps uplink port;
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~24 downlink ports only able to communicate with uplink ports.
The communication distance extends to 250 meters;
Supports port auto-ﬂip (Auto MDI/ MDIX);
Build-in power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 250W;
Adopts store-and-forward architecture;
Each of 24 ports all support IEEE802.3af;

Description:

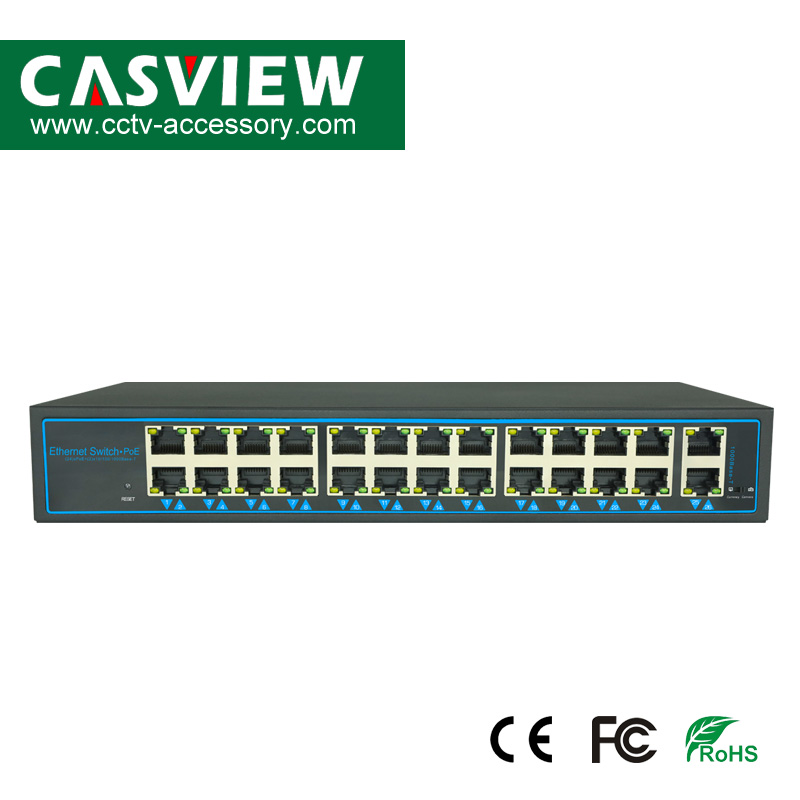

This is a compact 24+2 port PoE Switch,With 24 10/100Mbps PoE Switch, and 2ports 10/100/1000Mbps Uplink Ports. The 24 POE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, All POE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.

Specifications:

Model		CPE-4124B
Power	Power Adapter Voltage	AC110-240V
	Consumption	250W
Network Connector	Network port	POE Ethernet Port	1~24 Port: 10/100Mbps
		Ethernet Port	Uplink Port: 10/100Mbps
		SFP Port	SFP Port: 10/100/1000Mbps
	Transmission Distance		1~24 Port: 100Mbps:0~100m 10Mbps: 0~250m;
			Uplink Port: 1~100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1D
	Switch Capacity		9.2Gbps
	Packet Forwarding Rate		6.84448Mbps
	MAC Table		2K
Power Over Ethernet	POE Standard		IEEE 802.3af
	POE Power Supply Type		End-Span(1/2+;3/6-)
	POE Power Consumption		af=15.4W(every port)
LED Status Indicator VLAN/Extend	PoE Ethernet LED Indicator Indicator		Power: 1 red light indicates that the power normal work;
			POE: 24 yellow lights indicate that the POE is power on;
			Ethernet: 26 green lights indicate that the Ethernet link and act;
	Surveillance Module Ligh		1pcs(Green), green indicates Camera
Environmental	Working temperature		0ºC~55ºC
	Relative Humidity		20~95%
	Storage Temperature		-20ºC~70ºC
Mechanical	Dimension (L×W×H)		285mm180mm44mm
	Color		Black
	Weight		1737g
