10/100Mbit POE Switch

  • CPE-4116BE
  • CPE-4116BE
  • CPE-4116BE
  • CPE-4116BE
  • CPE-4116BE
CPE-4116BECPE-4116BECPE-4116BECPE-4116BECPE-4116BE

CPE-4116BE

  • 10/100Mbps PoE ports
  • Uplink port
  • IEEE 802.3af/at
  • Protection: Excellent anti thunder, anti static and anti-Interference
  • Product description: 19 Ports 10/100Mbps Switch, with Build-in 52V 2.3A 120W Power Supply 16*100/100Mbps PoE ports; 2*10/100/1000Mbps uplink port; 1*10/100/1000Mbps SFP port
  • INQUIRY   EMAIL

19 Ports 10/100Mbps Switch, with Build-in 52V 2.3A 120W  Power Supply
16*100/100Mbps PoE ports; 2*10/100/1000Mbps uplink port; 1*10/100/1000Mbps SFP port
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~16 downlink ports only able to communicate with uplink ports.
The communication distance extends to 250 meters;
Supports port auto-flip (Auto MDI/ MDIX);
Build-in power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 250W;
Adopts store-and-forward architecture;
Each of 16 ports all support IEEE802.3af;

Description:

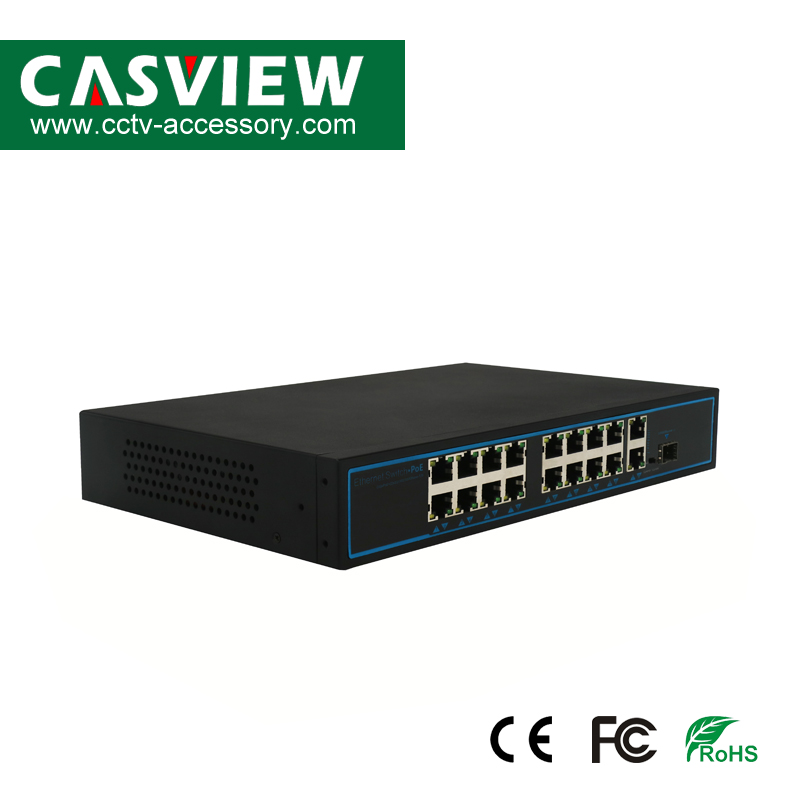

This is a compact 16+2+1 port PoE Switch,With 16 10/100Mbps PoE Switch, 2 10/100/1000Mbps Uplink Ports and 1 10/100/1000Mbps SFP Port. The 16 POE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, All POE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.


Specifications:

Model CPE-4116BE
Power Power Adapter Voltage AC110-240V
Consumption 250W
Network Connector Network port POE Ethernet Port 1~16 Port: 10/100Mbps
Ethernet Port Uplink Port: 10/100Mbps
SFP Port SFP Port: 10/100/1000Mbps
Transmission Distance 1~16 Port: 100Mbps:0~100m
                 10Mbps:  0~250m;
Uplink Port: 1~100m
Transmission Medium Cat5/5e/6 standard network cable
Network Switch Network Standard IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1D
Switch Capacity 9.2Gbps
Packet Forwarding Rate 6.84448Mbps
MAC Table 2K
Power Over Ethernet POE Standard IEEE 802.3af
PoE Power Supply Type End-Span(1/2+;3/6-)
POE Power Consumption af=15.4W(every port)
LED Status Indicator VLAN/Extend PoE Ethernet LED Indicator Indicator Power: 1 red light indicates that the power normal work;
POE: 16 yellow lights indicate that the POE is power on;
Ethernet: 18 green lights indicate that the Ethernet link and act;
Surveillance Module Ligh 1pcs(Green), green indicates Camera
Environmental Working temperature 0ºC~55ºC
Relative Humidity 20~95%
Storage Temperature -20ºC~70ºC
Mechanical Dimension (L×W×H) 285mm*180mm*44mm
Color Black
Weight 1647g

Optional Models:


PREVIOUS:CPE-4108B NEXT:CPE-4124B
