BNC Video Connector

  • CBN-070 BNC Male to F type Connector
  • CBN-070 BNC Male to F type Connector
  • CBN-070 BNC Male to F type Connector
  • CBN-070 BNC Male to F type Connector
  • CBN-070 BNC Male to F type Connector
  • CBN-070 BNC Male to F type Connector
CBN-070 BNC Male to F type ConnectorCBN-070 BNC Male to F type ConnectorCBN-070 BNC Male to F type ConnectorCBN-070 BNC Male to F type ConnectorCBN-070 BNC Male to F type ConnectorCBN-070 BNC Male to F type Connector

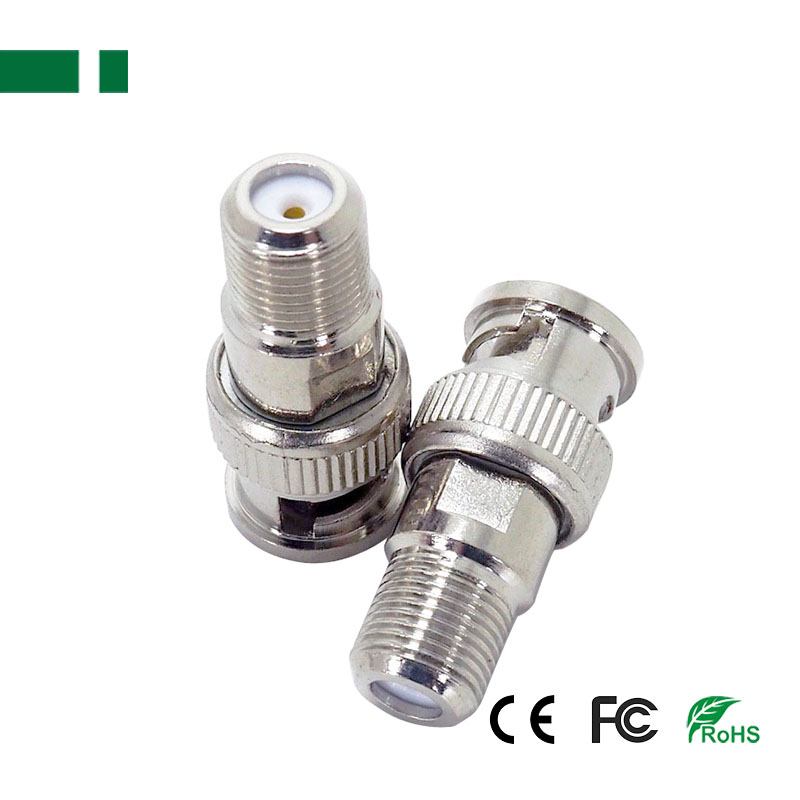

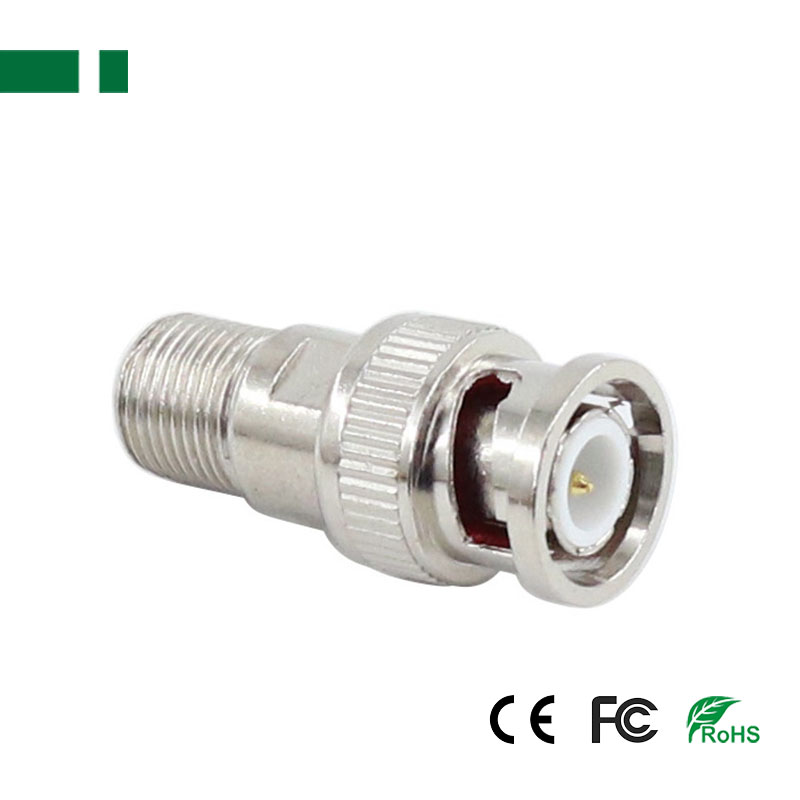

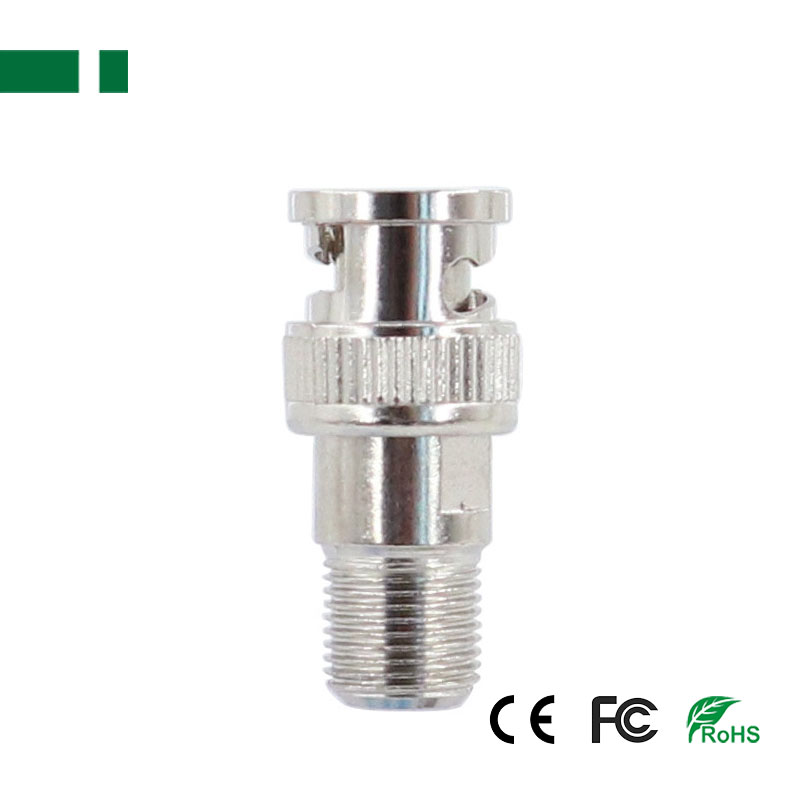

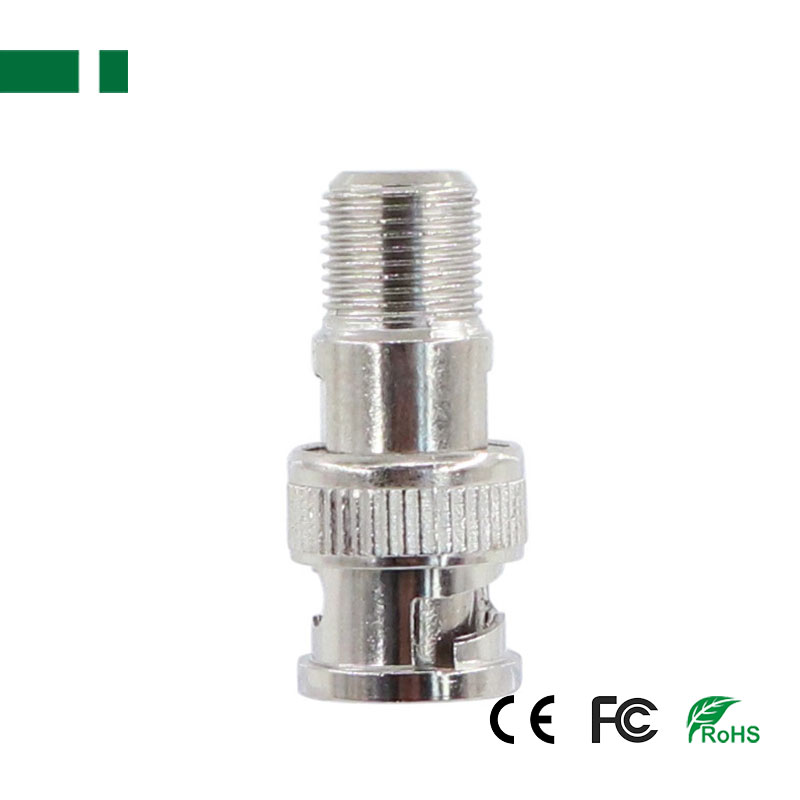

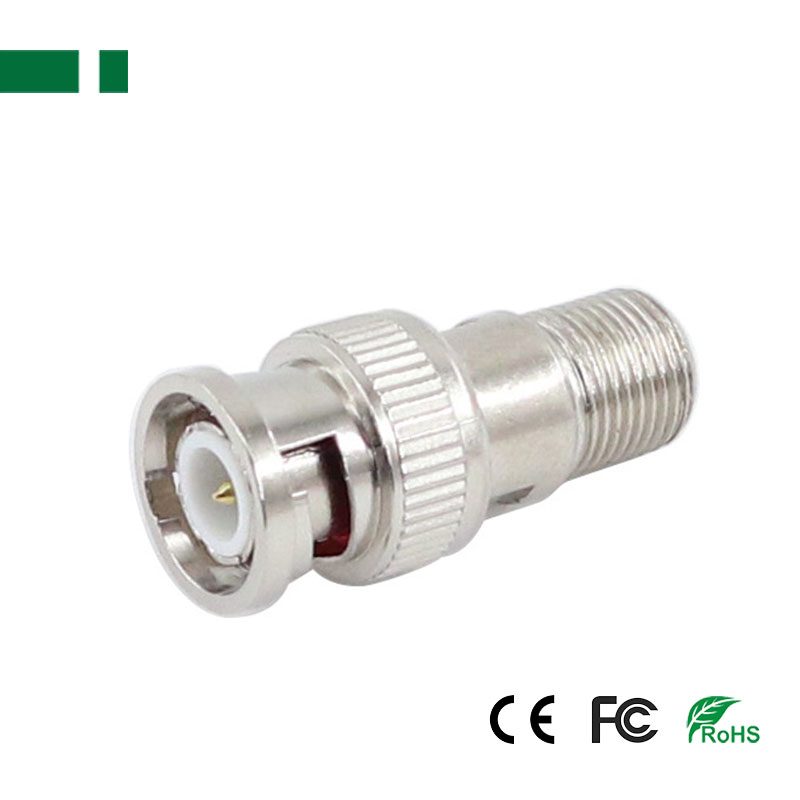

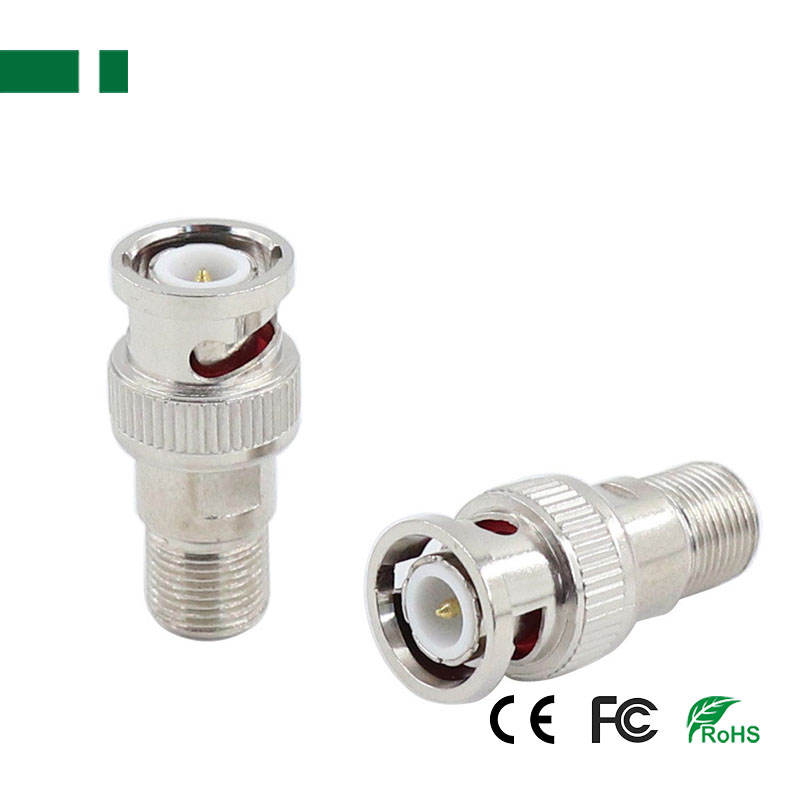

CBN-070 BNC Male to F type Connector

  • BNC Male to F type
  • Zinc Alloy (Nickel-plated)
  • Great for cctv system connection
  • Product description: BNC Male to F type Connector. email: info@casview.com
  • INQUIRY   EMAIL
BNC Male to F type
Material:Zinc Alloy (Nickel-plated)


100% brand new and high quality product
Great for cctv system connection

High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money


Model CBN-070
Impedance 50Ω,75Ω
Resistanc Inner conductor ≤2.0mΩ
Contact Resistance center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance ≥5000MΩ
Frequency Range 0~3GHZ
Disengage Force ≥0.6N
Attenuation 0.5dB type
Wire Type Coaxial Cable
DC Loop Resistance 52 ohms per 1,000 ft
Withstand Voltage 1500V rms
Frequency Response DC to 8 MHz
Working Temperature -10°C to +70°C
Humidity 0 to 95%
Packing 100pcs/bag
