10/100/1000Mbit POE Switch

  • CPE-G4216BE
  • CPE-G4216BE
  • CPE-G4216BE
  • CPE-G4216BE
  • CPE-G4216BE


  • 10/100/1000Mbps PoE ports
  • Uplink port
  • IEEE 802.3af/at
  • Protection: Excellent anti thunder, anti static and anti-Interference
  • Product description: 20 Ports 10/100/1000Mbps Switch; 16*10/100/1000Mbps PoE ports; 2*10/100/1000Mbps uplink port; 2*10/100/1000Mbps SFP port;


◆ 20x 10/100/1000Mbps auto-sensing RJ45 ports,
16x 10/100/1000Mbps PoE ports, 2x10/100/1000Mbps uplink port, ;2*10/100/1000Mbps SFP port
◆ Supports port auto-flip (Auto MDI/ MDIX);
◆ Maximum power of single PoE port: 15.4W/30W;
◆ Adopts store-and-forward architecture;
◆ IEEE 802.3af/at power on up to 16 ports;
◆ With anti-theft lock;
◆ Protection: Excellent anti thunder, anti static and anti-Interference;
◆ Built in Power Supply, suitable for desktop


Model CPE-G4216BE
Power Adapter voltage 48-57V DC
POE Ethernet port 1-16 port: 10/100/1000Mbps
Ethernet port 2*Uplink port: 10/100/1000Mbps, 2*10/100/1000Mbps SFP port
Transmission Distance 1-16 port: 0-100m, uplink port: 100m, via Cat5/ 5e/ 6 standard network cable
Network standard IEEE 802.3/ 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switching capacity 36Gbps
Packet Forwarding rate 26.784Mpps
MAC table 8K
POE Standard IEEE 802.3AF/AT
POE Power Supply type End-span (1/2+, 36-)
POE power consumption af=15.4W (each port), at=30W (each port)
Working temperature 0℃~55℃
Relative humidity 20~95%
Storage temperature -20℃~70℃
MTBF >30000h

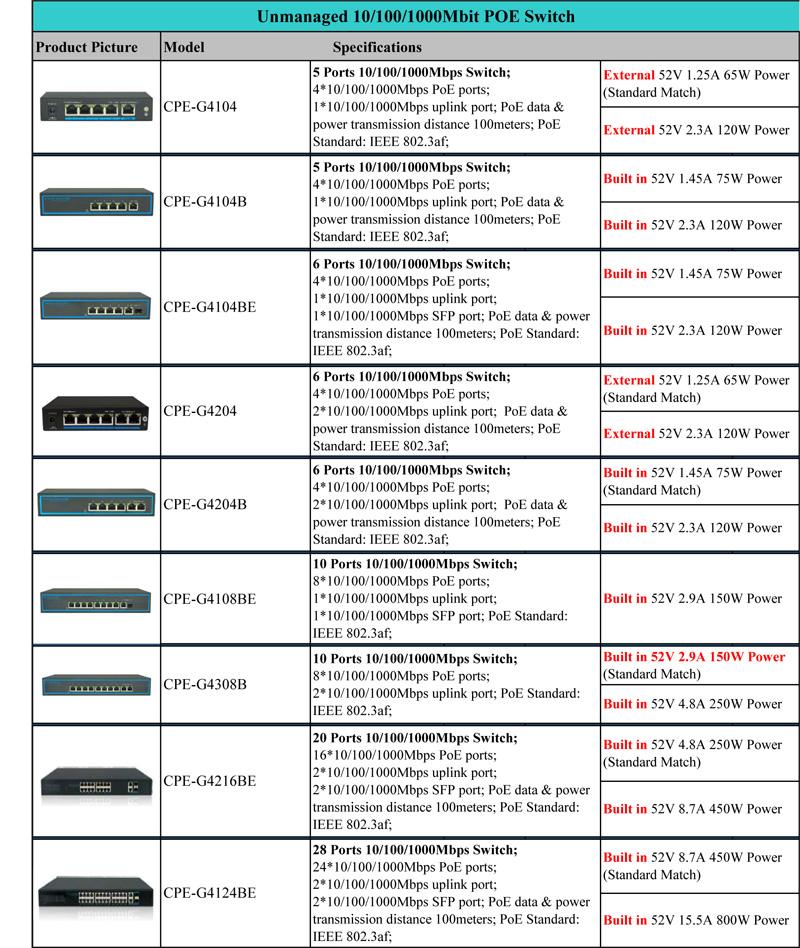

Optional Models:
