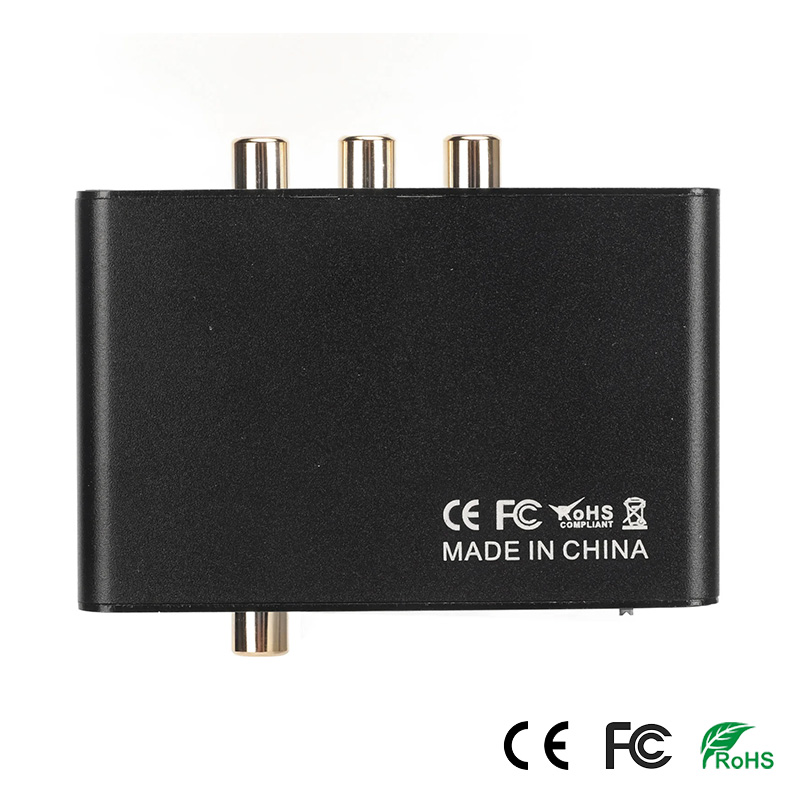

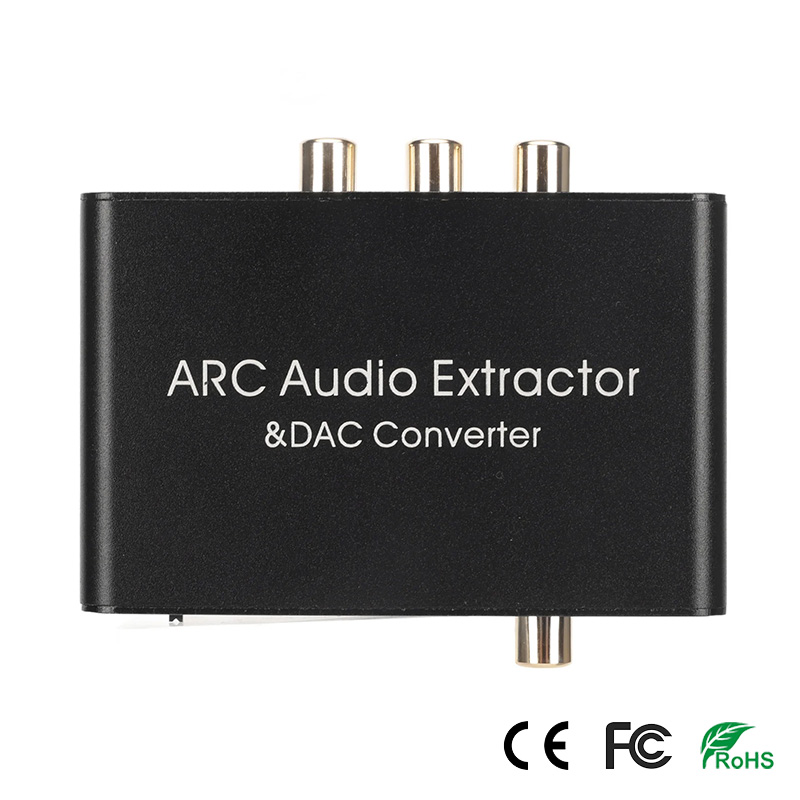

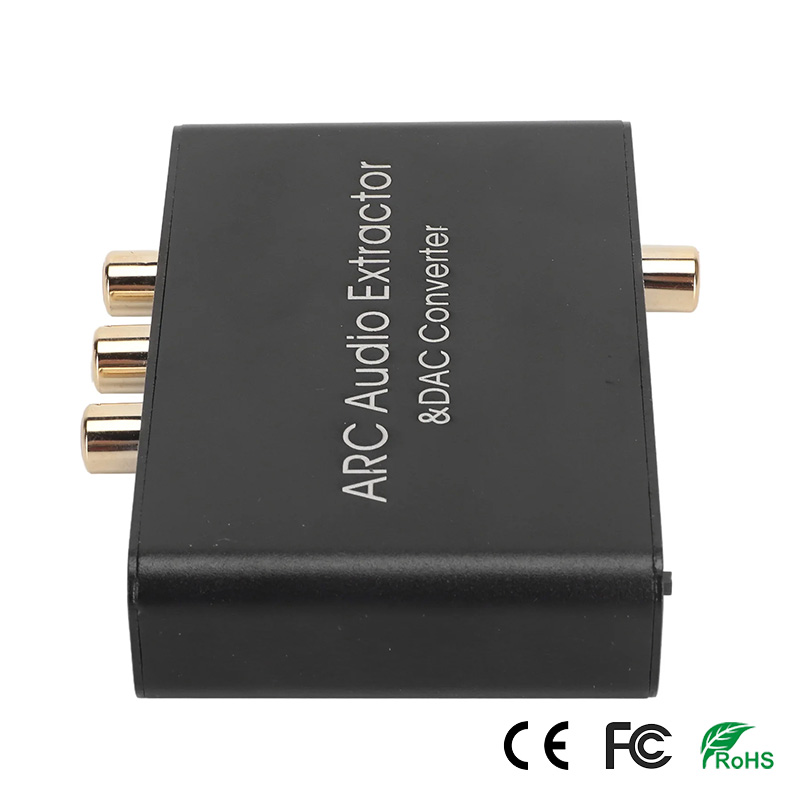

CHM-A16 HDMI ARC Audio Extractor DAC Converter

CHM-A16 HDMI ARC Audio Extractor DAC Converter

HDMI ARC Audio Extractor

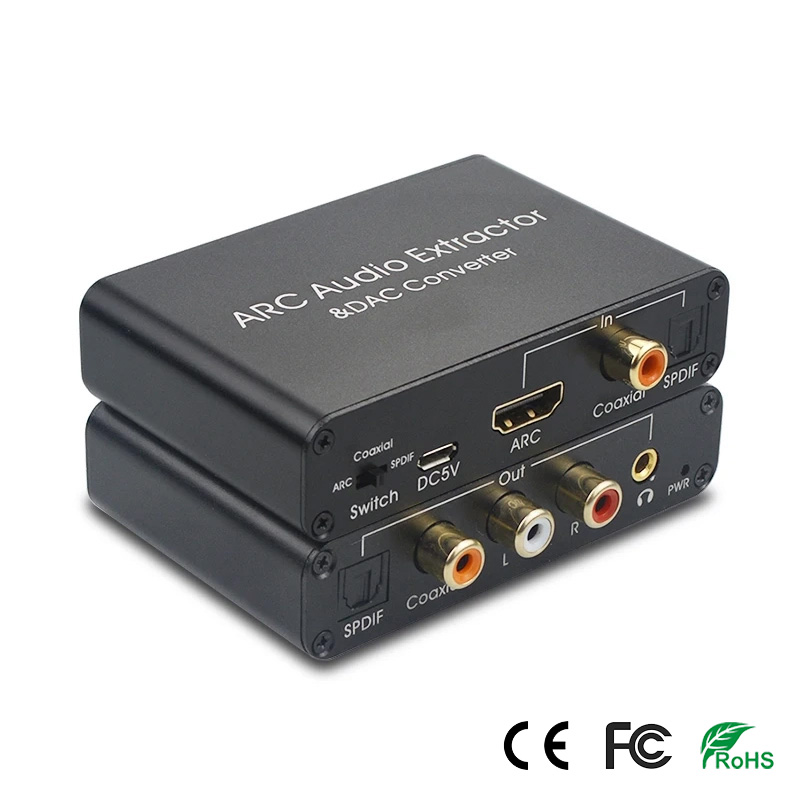

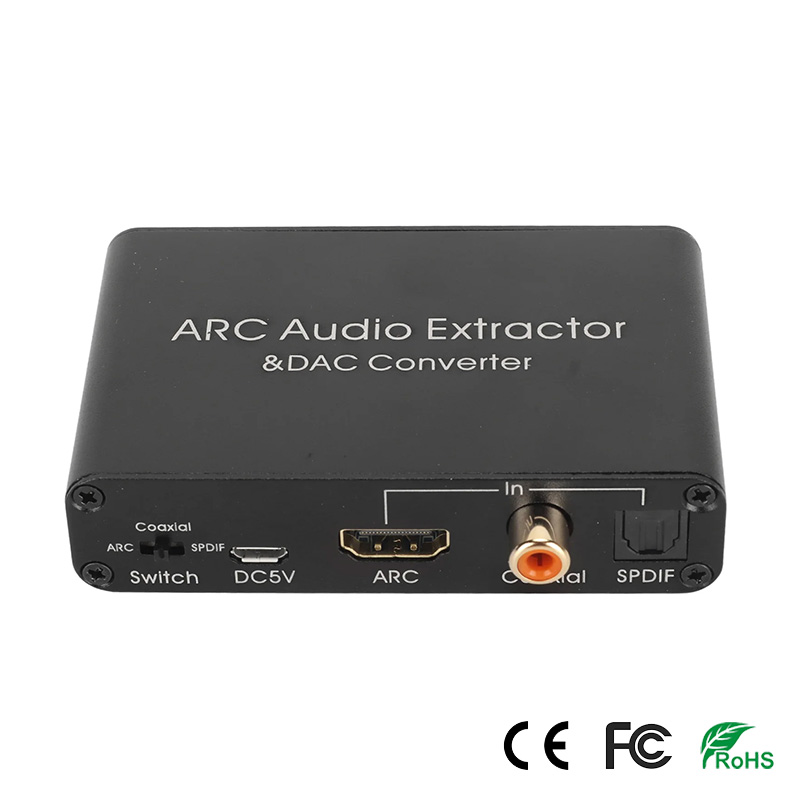

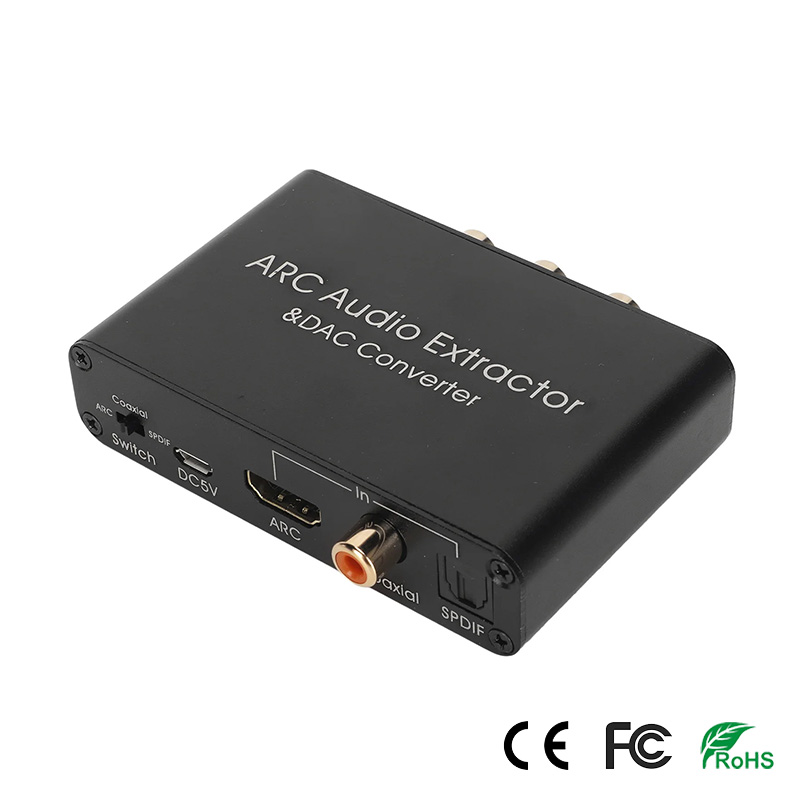

HDMI, SPDIF or coaxial input optional

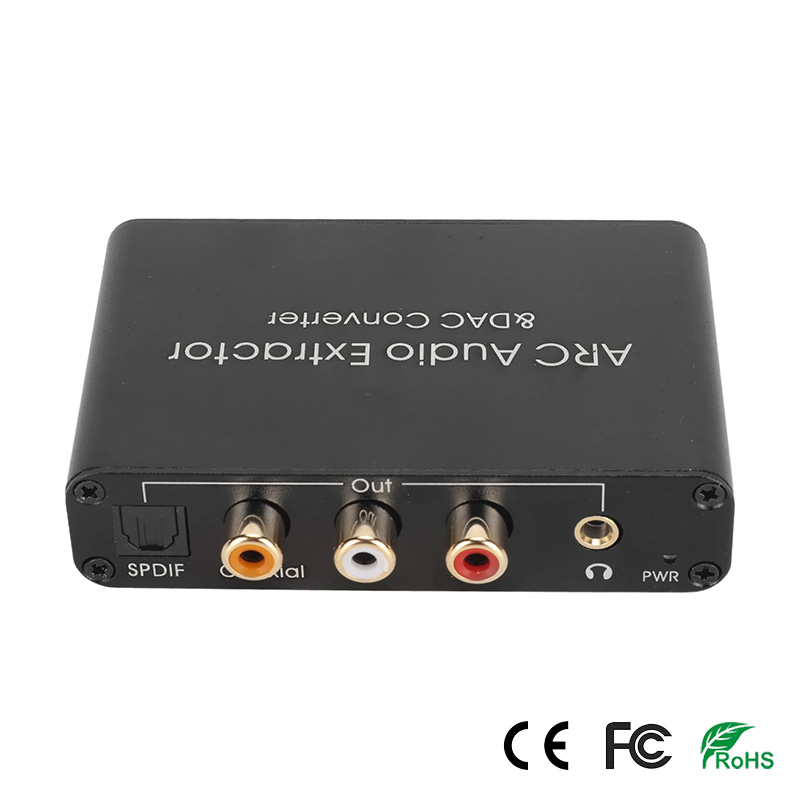

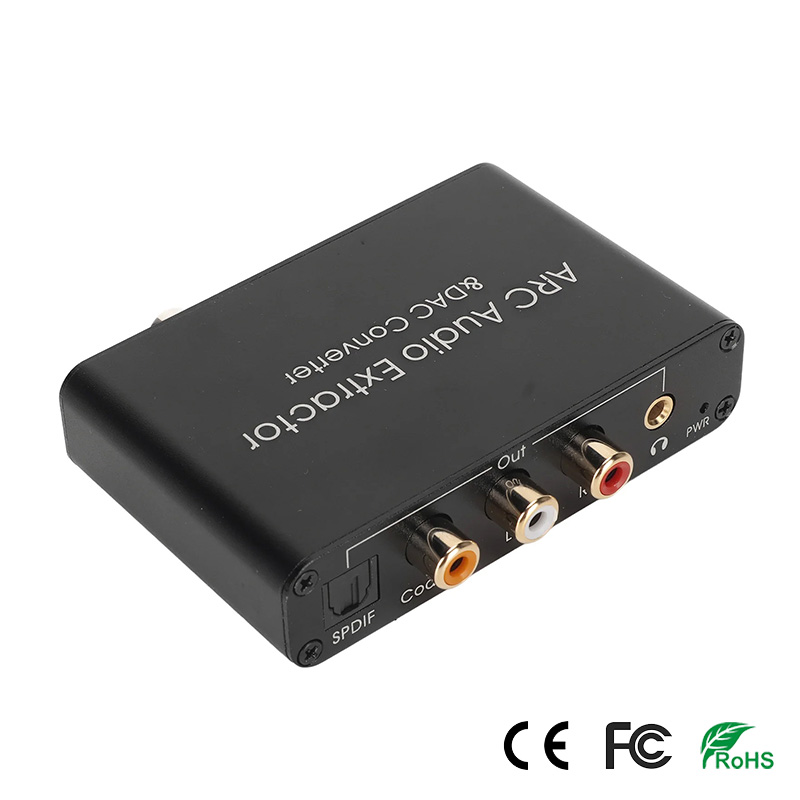

Coaxial, SPDIF L/R RCA 3.5mm Output
Aluminium Housing
Product description: CHM-A16 HDMI ARC Audio Extractor DAC Converter
INQUIRY EMAIL

Features:

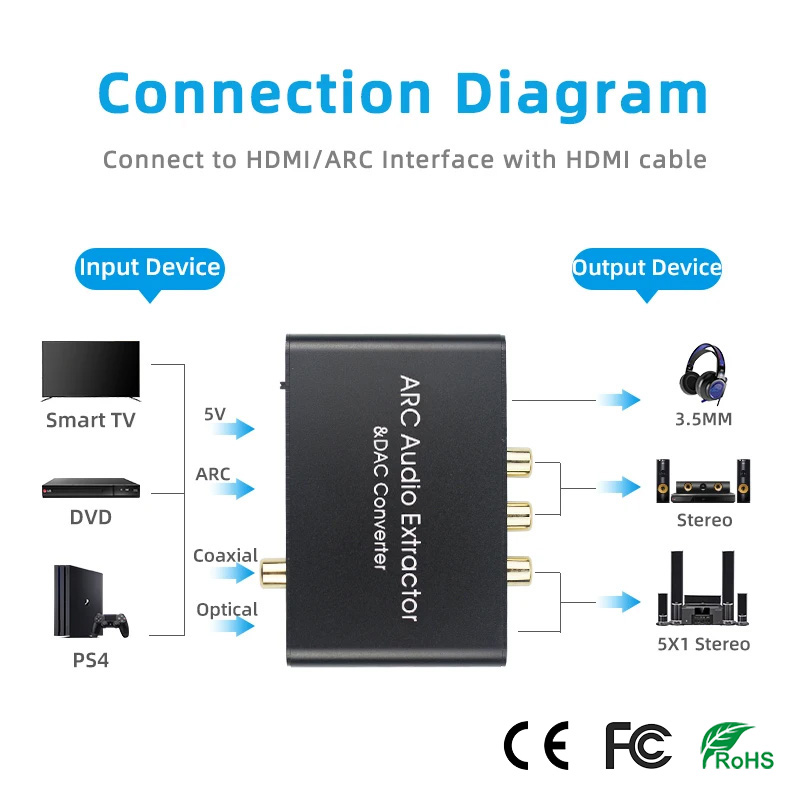

1. HDMI, SPDIF or coaxial input optional

2. DAC CONVERTER --- This Converter Can Be Used to Convert PCM/ LPCM 2.0CH Digital Audio to L/R RCA and 3.5mm Analog Stereo Audio.
3. 4 INTERFACE Audio Separation --- Coaxial / SPDIF Interface Supports 5.1CH Audio Output, RCA and 3.5mm Interface Supports 2.0CH Audio Output, 4 interface synchronization output.
4. 192kHz 24bit --- Supports Sampling Rate at 32KHz,44.1KHz,48KHz,96KHz and Even 192Khz 24bit, Proving High Quality Audio Transmission.
5. CONVENIENT DESIGN --- Aluminum Alloy Case with Gold Plated Interface Provide Good Anti-Interference. Let the Sound Quality Nondestructive switching.

Specifications:

Support SPDIF output
Support Coaxial output
Support RCA Stereo output
Support 3.5mm stereo headphone output
3.5mm stereo headphone port equipped with high-performance audio amplifier
Support switch noise reduction
Support automatic signal mute function
Support transmission of 192KHz audio sampling rate
Optical fiber coaxial interface supports 5.1 channel transmission
Specifications:
Material: Aluminum Alloy
Color: Black
Power Supply Interface: Micro USB
Maximum operating current: 65mA
Power Adapter Specification: AC 100V-240V 50/60HZ, 5V/1A
Working environment temperature: -10~+55℃
Storage temperature: -20~+60℃
Operating Humidity: 10~90%RH(non-condensing)
Storage humidity: 5~95%RH (non-condensing)
Case size: 81.5*58.5*21.5 (mm)
