RCA Audio Connector

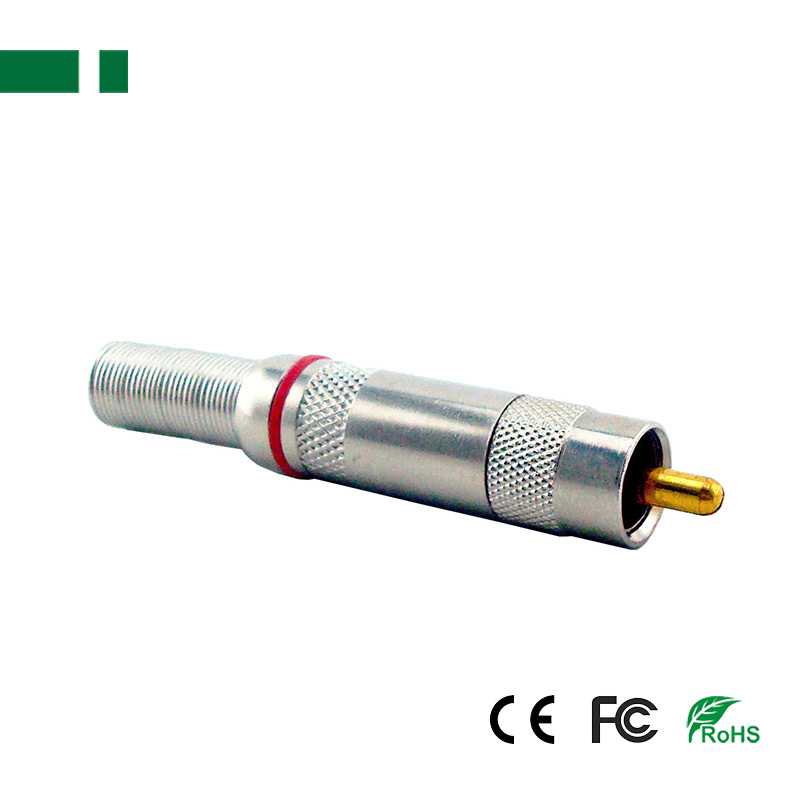

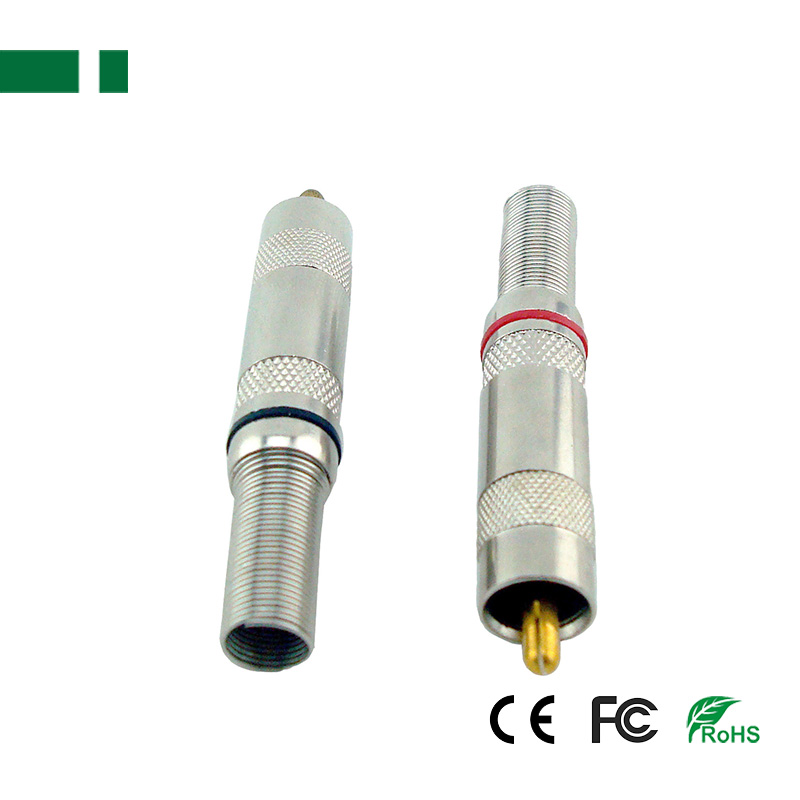

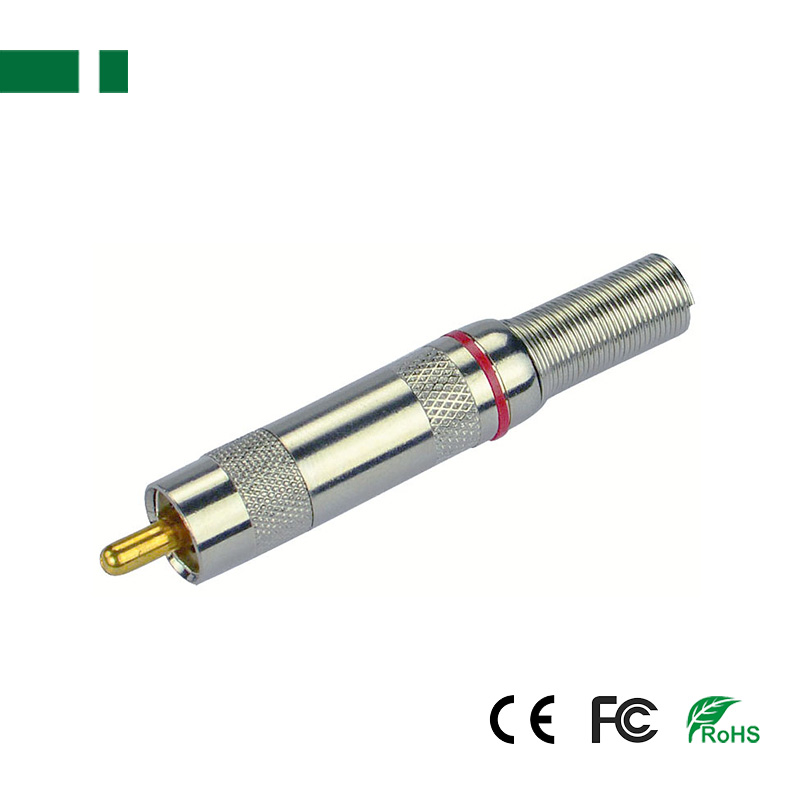

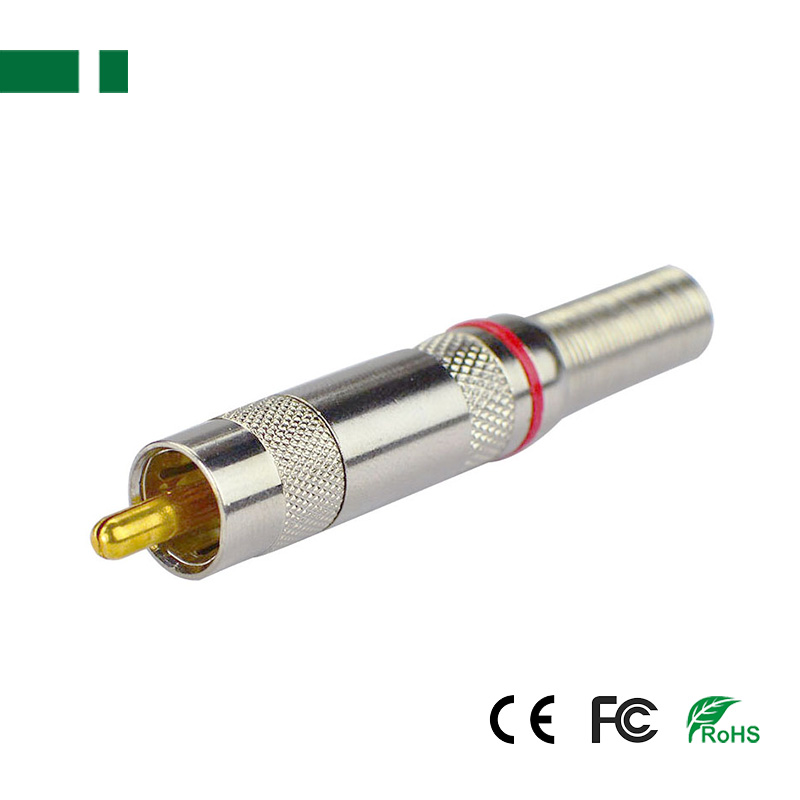

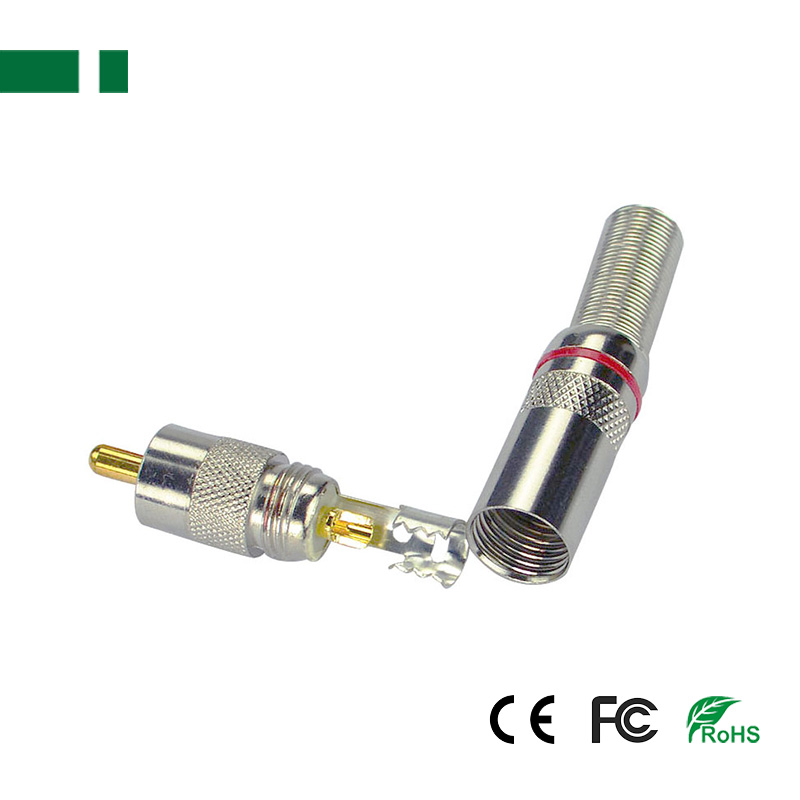

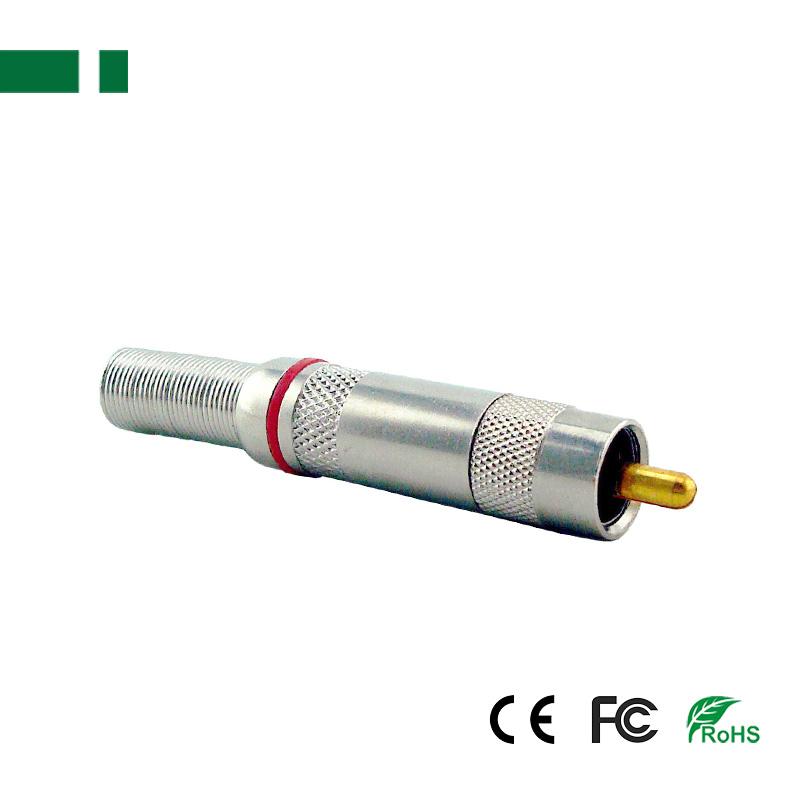

CBN-069 RCA Male Connector with Screw

RCA Male Connector
Copper Material
Great for cctv system connection
Product description: CASVIEW technology concentrating on CCTV power supply, video balun, CCTV Cable BNC Connectors and other cctv accessories etc. email: info@casview.com
INQUIRY EMAIL

RCA Male Connector with screw, Copper Material
100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling

Easier for CCTV camera installation save time and money

Specification:

Model	CBN-068	CBN-069
Connection	Solder without Screw	Solderless with Screw
Impedance	50Ω,75Ω
Resistance	Inner conductor ≤2.0mΩ
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	Coaxial Cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Temperature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
