Video & Audio Extender

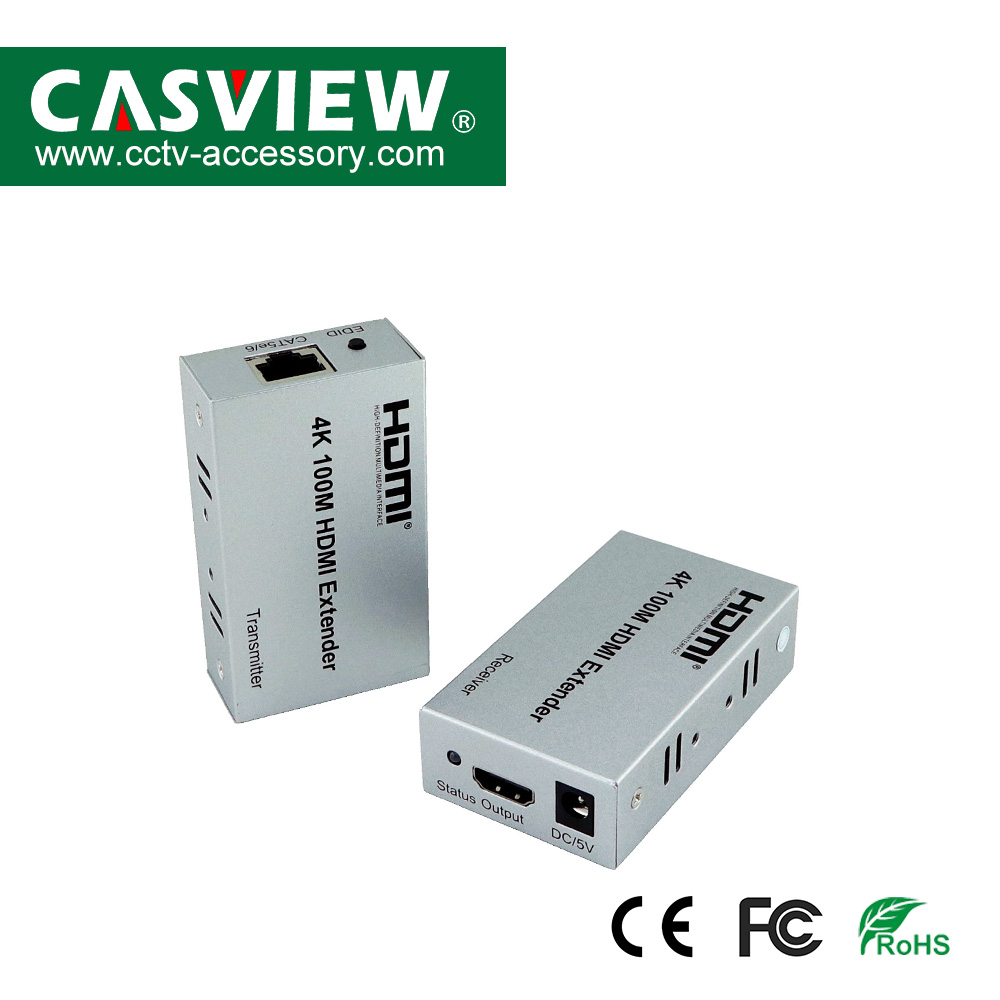

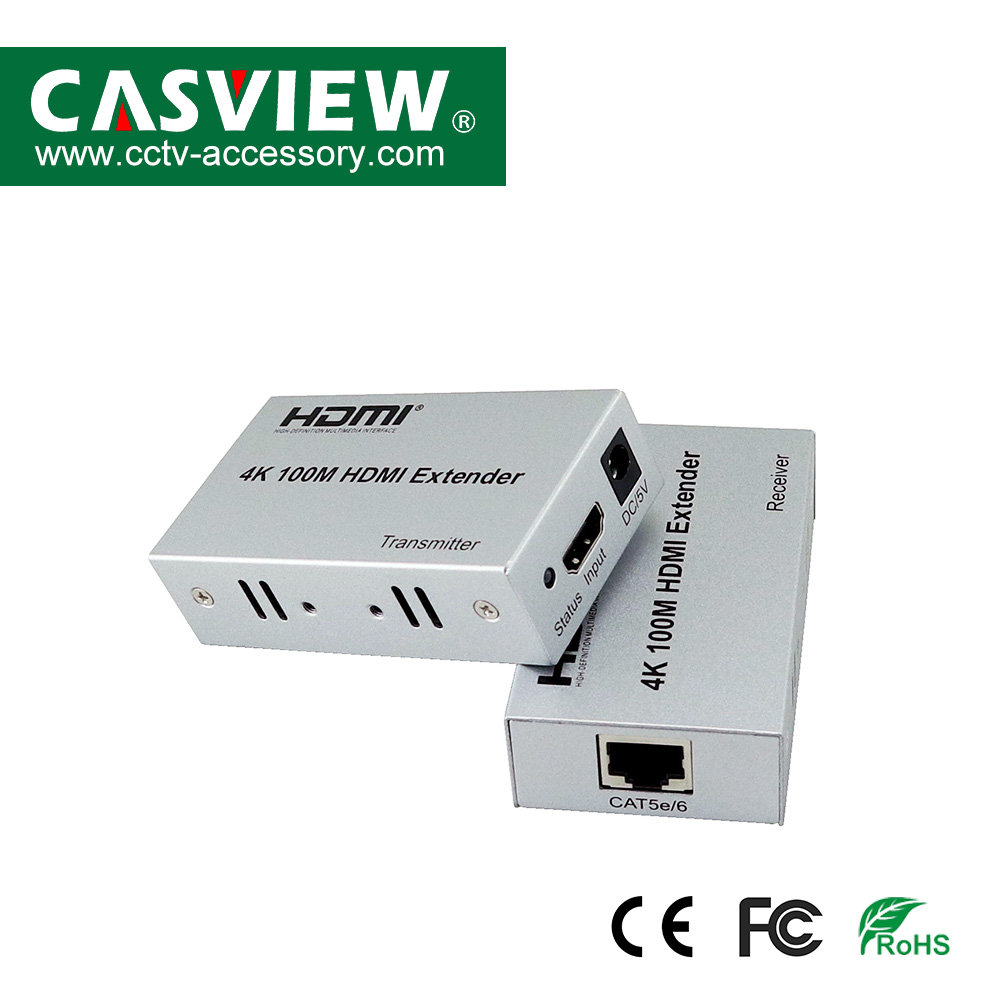

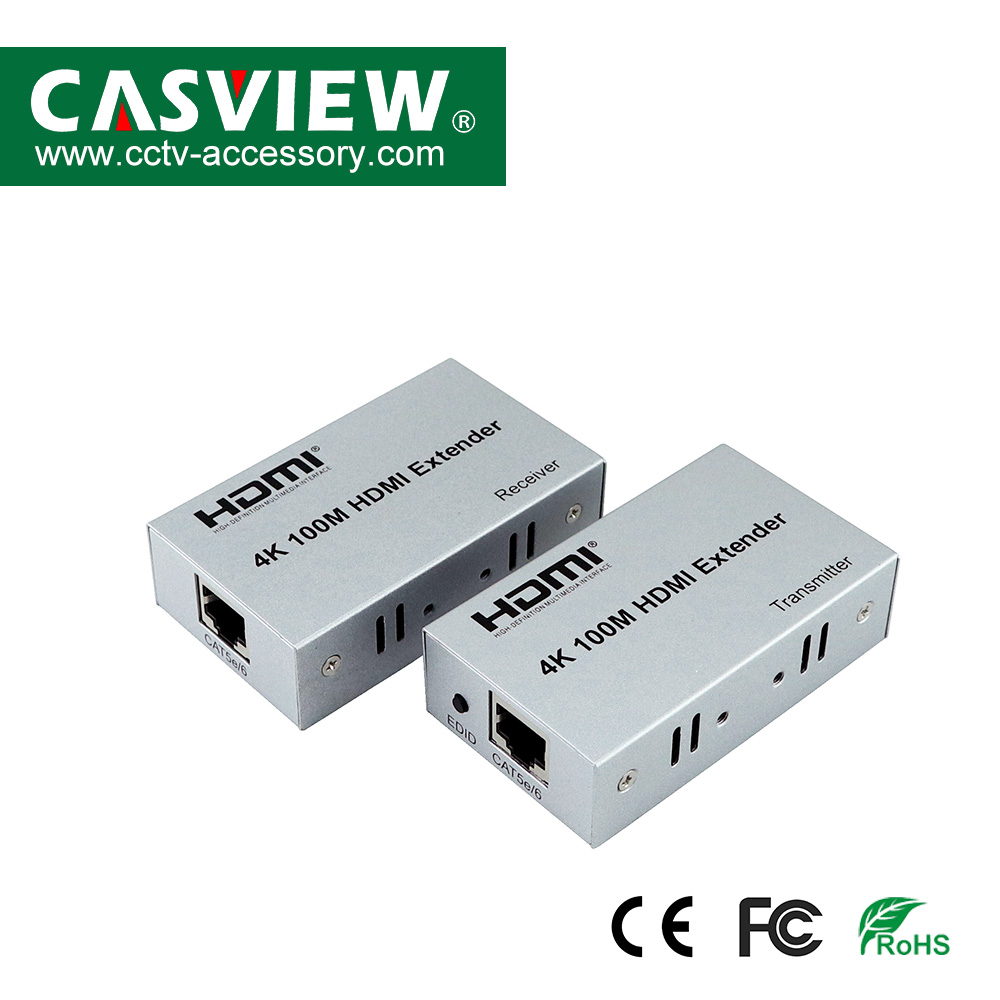

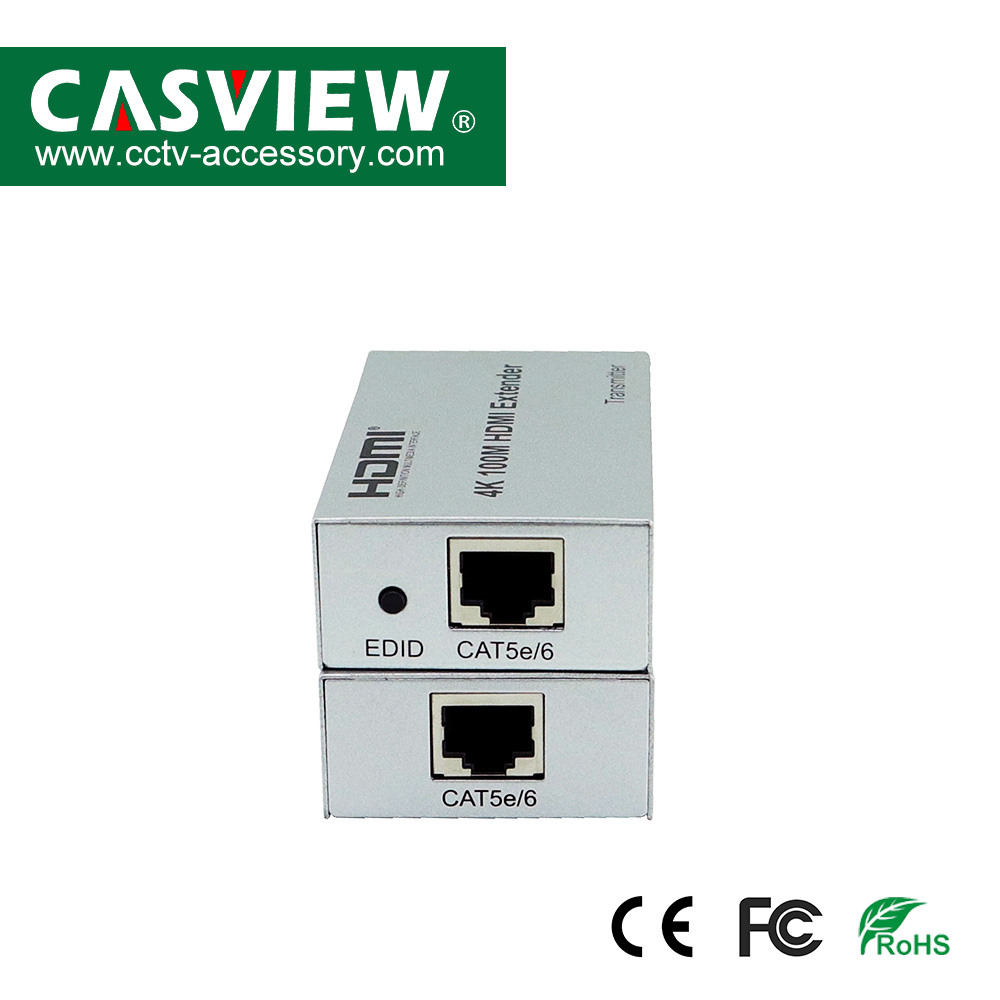

CHDT-100

Product description: CASVIEW technology concentrating on switching power supply, power adapter, solar LED lights & cctv accessories etc. email: info@casview.com
INQUIRY EMAIL

Introduction The Extender uses single cat5e or cat6(recommended) Cables instead of HDMI cable to transmit high definition signal up to 100 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal. Features 1: Support HDMI 1.4b. 2:100M long distance transmission： 3: Low power consumption, low temperature and high safety. TX Extender RX Extender Specifications: Length of CAT5e/CAT6 cable between Rx and TX ……………................ Up to 100 meters HDMI Input …..…………………...……….................... 4K/1080p/720p/576p/576i/480p/480i HDMI Output …..…………….…............ 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Max bandwidth ………………………………………………………………………….. 340MHz Max baud rate ……………….…….………………….………….…………………... 3.4x3Gbps Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p Output DDC signal …………………………………………………................. 5Volts p-p (TTL) Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable TX Max working current ………………………………………...………….……………. 350mA RX Max working current …………………………………………...…………………….. 200mA Power Adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A Operating Temperature range ……..…………….………………………....…… (-15 to +55℃) Operating Humidity range ………………………….….…… 5 to 90%RH (No Condensation) Dimension (L x W x H) ……………………………….………………………… 81x47x22 (mm) TX Weight …..……………………………………………..………………………........…… 101g RX Weight .....................................................................................................................101g Connecting and Operating: 1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters 2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters 3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 100 meters 4.Connect 5V Power Supply to the TX and RX. 5.LED indicator light TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red,and keep flashing. RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red,and keep flashing. 6.EDID button: The button can support the switch of EDID between 1080P and 4K.(4K is the default EDID when the power is on). Connection diagram: HDMI extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on. Audio-visual conference Command and control center Home theater Application diagrams HDMI Cable HDMI Cable CAT 5E/6 Cable 1PCS 1PCS The Package includes: 1. TX Extender 2. RX Extender 2PCS 1PCS
