Video Extender

  • CHDT-003-2
  • CHDT-003-2
  • CHDT-003-2
  • CHDT-003-2
  • CHDT-003-2
CHDT-003-2CHDT-003-2CHDT-003-2CHDT-003-2CHDT-003-2

CHDT-003-2

  • Product description: CASVIEW technology concentrating on switching power supply, power adapter, solar LED lights & cctv accessories etc. email: info@casview.com
  • INQUIRY   EMAIL
Product Parameter :

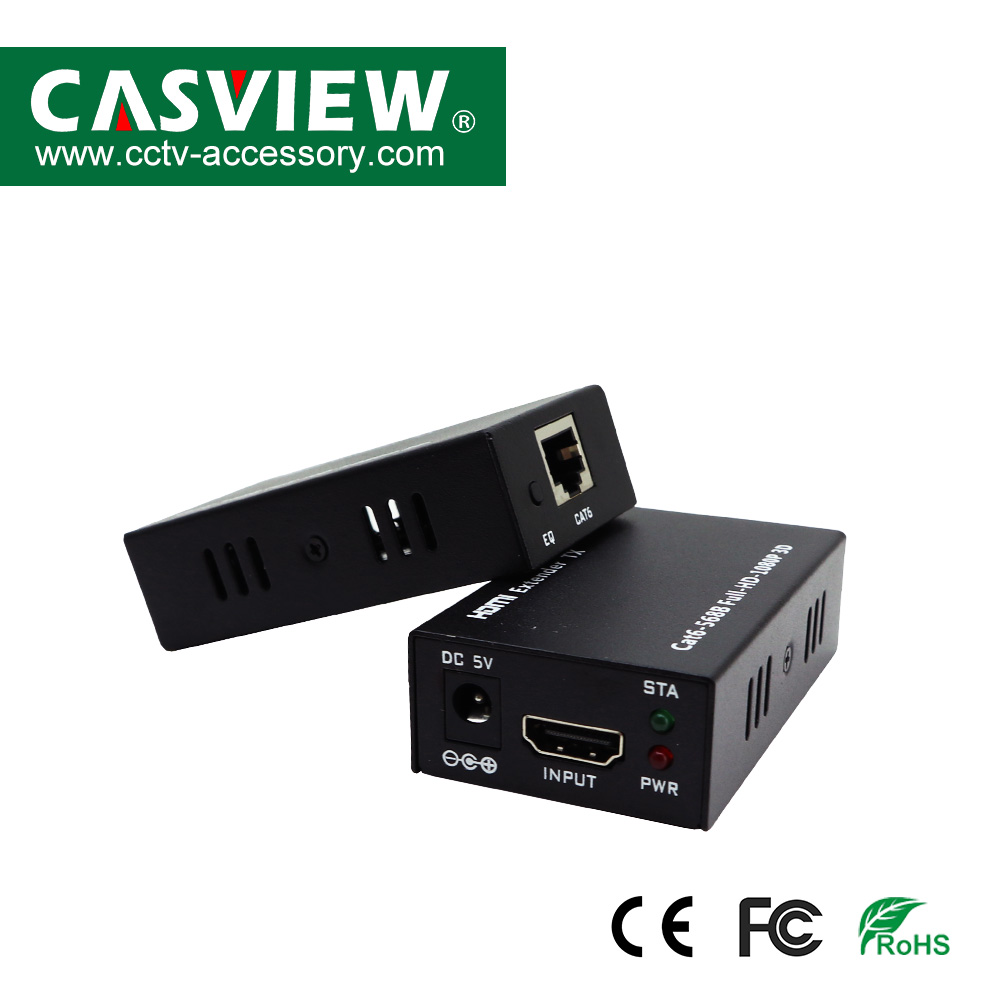

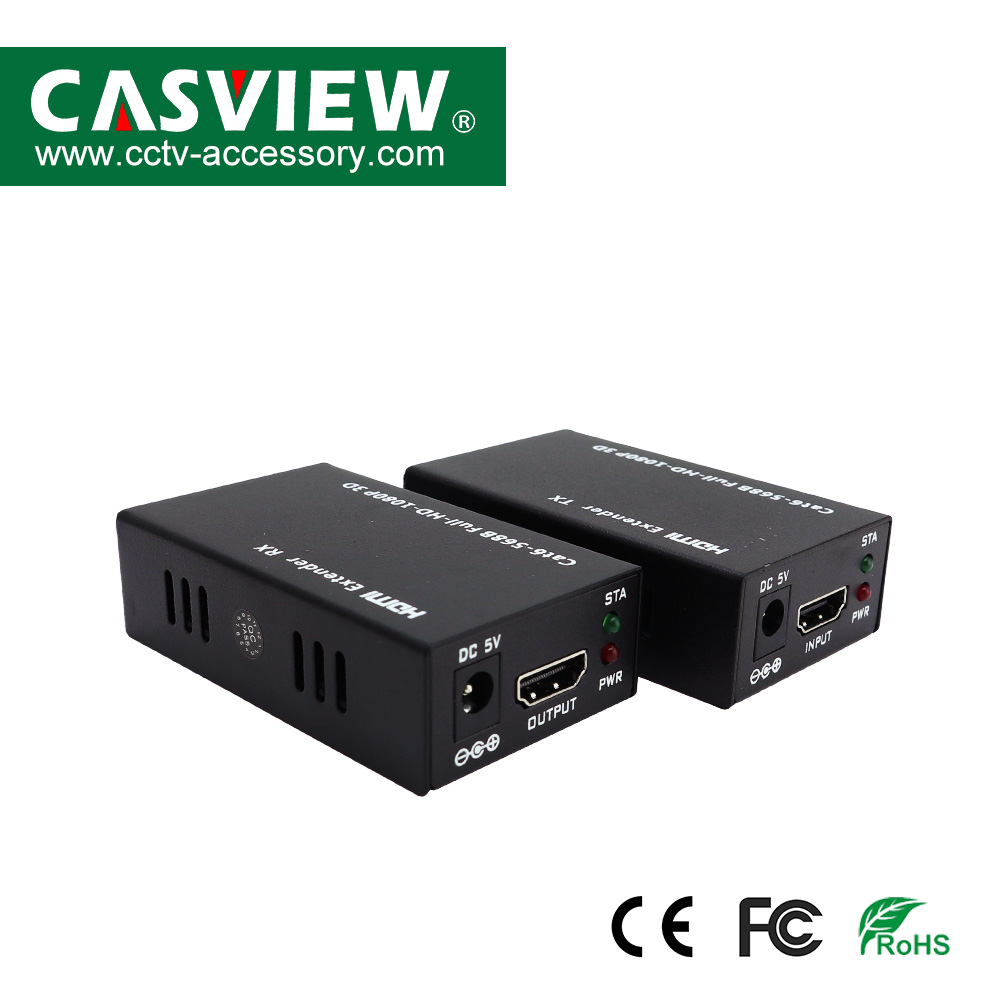

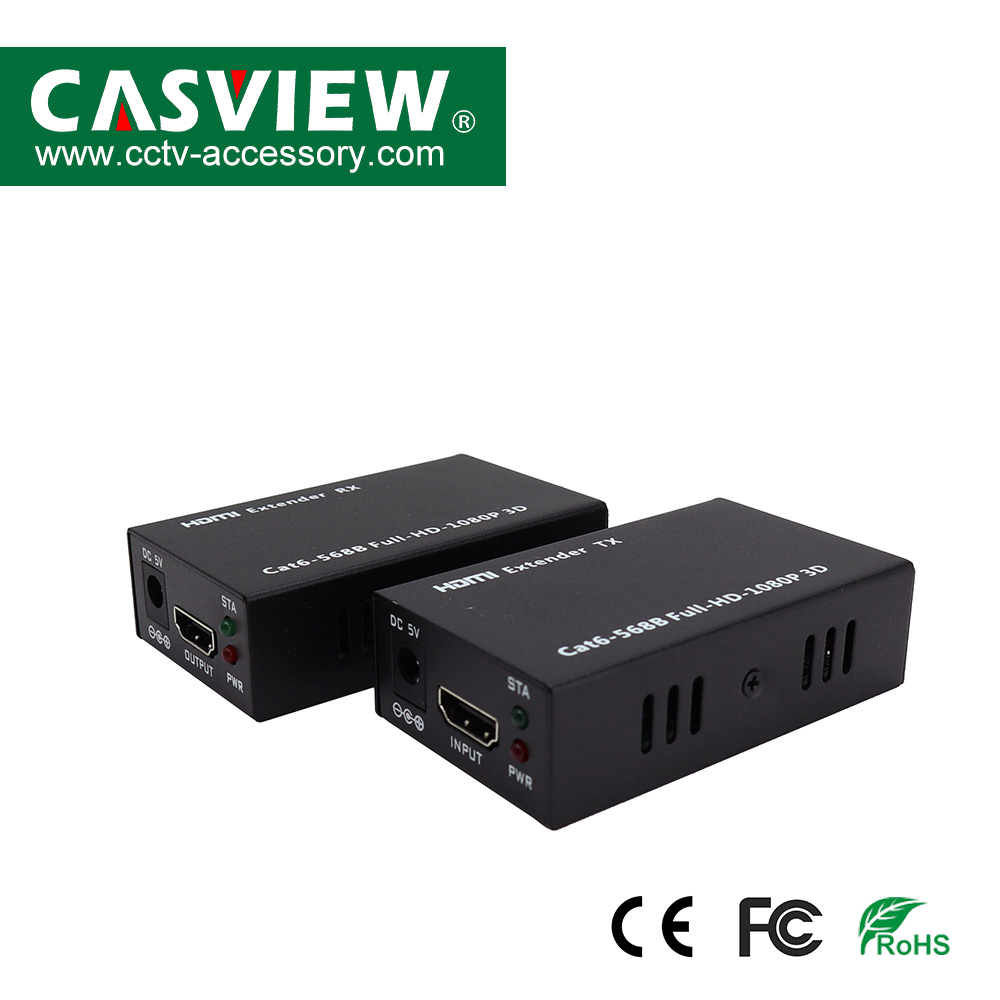

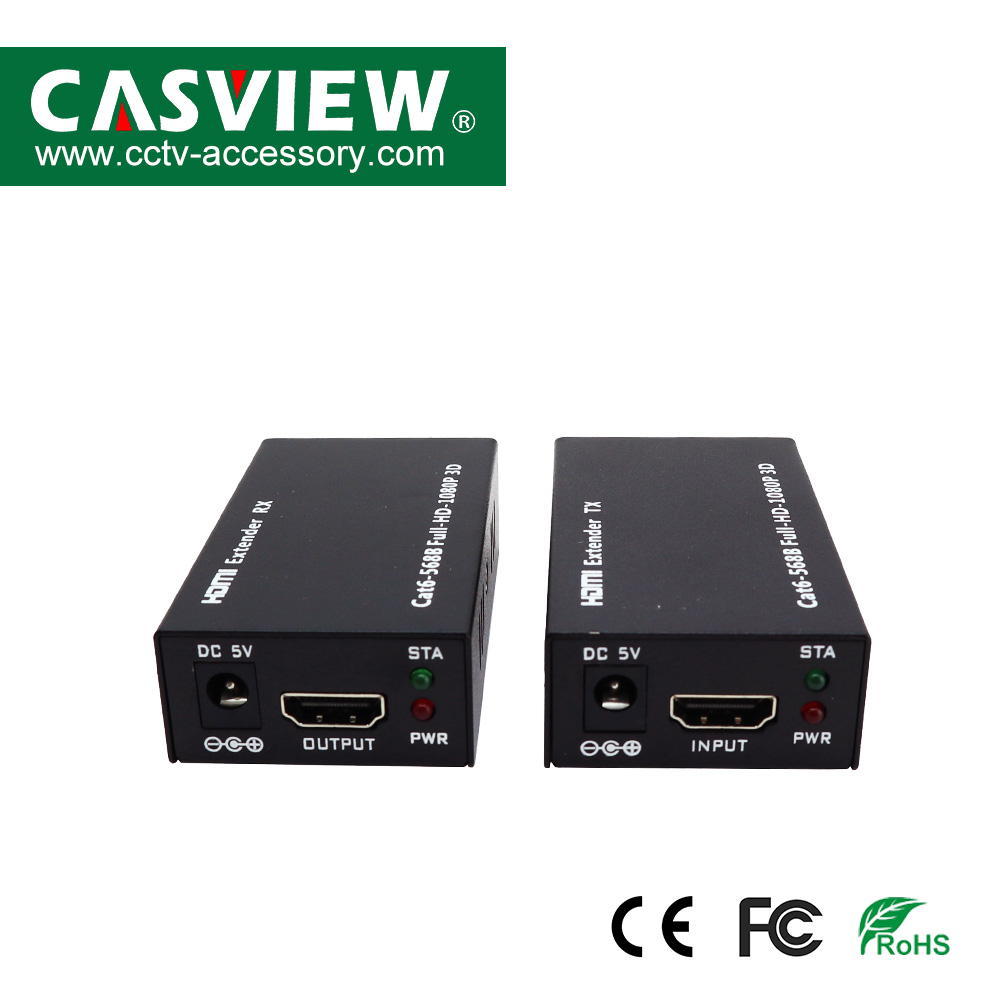

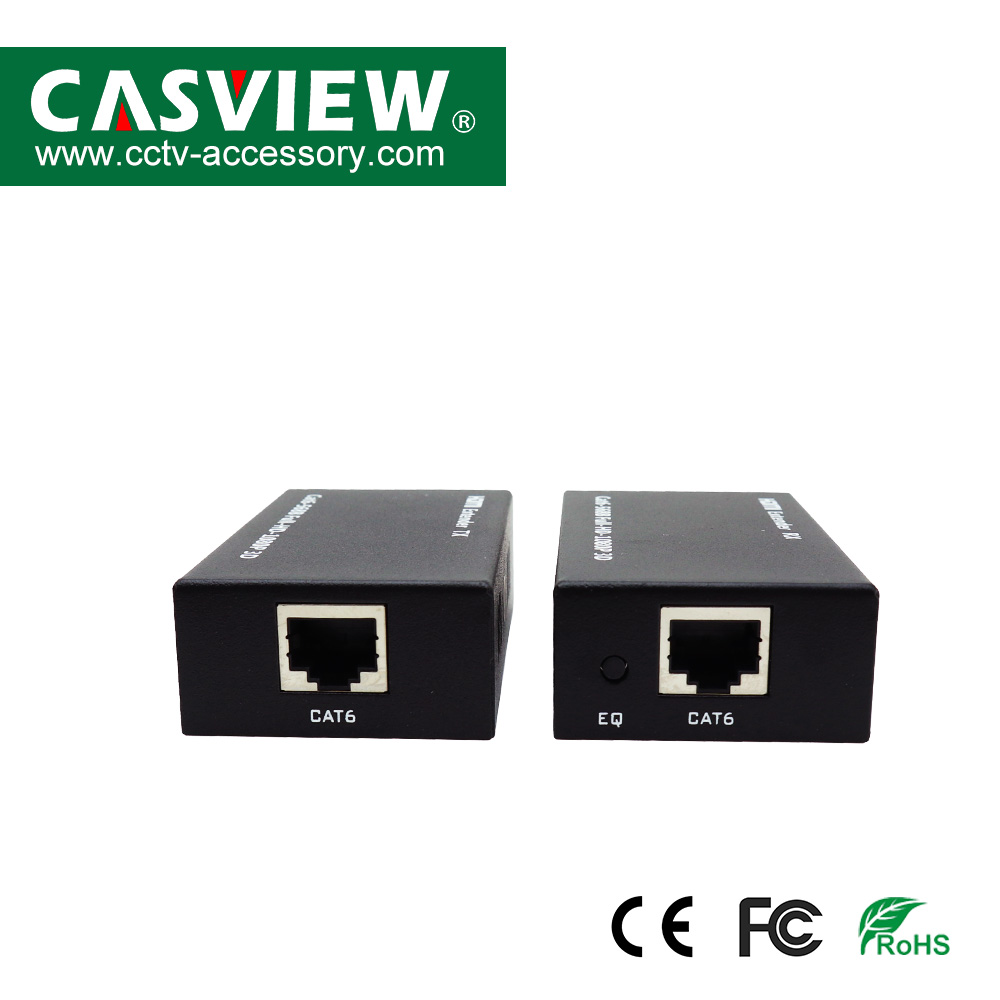

60M HDMI Extender
Support HDMI1.3;
1.3 compatible HDCP agreement;
Each set contains a transmitter and a receiver
Using CAT 6 Cable instead of HDMI cable to achieve long distance transmission
Support 1080p resolution signal transmission speed
Support video input: 60 fs / 1080 p / 1080/24/50 I / 720 p / 576 p / 576 I / 480 p / 480 I;
Signal transmission: two cat6 line (recommended) instead of HDMI cable cable between receiver and transmitter up to 60 meters;
Support video output: 60 fs / 1080 p / 1080/24/50 I / 720 p / 576 p / 576 I / 480 p / 480 I;
Support CEC;
Supports audio formats: DTS HD/Dolby * - trueHD/LPCM7.1 / DTS/Dolby * - AC3 / DSD.
LED display lamp: when power or extension work related LED lights brighten;

The outer DC5V power adapter.

Specifications:
Size: Approx. 8cm x 4.7cm x 2.4cm
Operating Temperature Range: 0 to +70 degree Centigrade
Operating HUmidity Range: 10 to 85%RH(No Condensation)
Input Video Signal: 0.5-1.0 Volts P-P
Support Video Format: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
Video Output: HDMI
Power Consumption: 5W(Max.)
Power Supply: DC 5V
Plug Tyap: US Plug/EU plug
Color: Black
