RJ45 Connector

  • CRJ-K6A
  • CRJ-K6A
  • CRJ-K6A
  • CRJ-K6A
  • CRJ-K6A
CRJ-K6ACRJ-K6ACRJ-K6ACRJ-K6ACRJ-K6A

CRJ-K6A

  • CAT6A Keystone Jack
  • Product description: Module:Cat6A Color: Silver Material:Phosphor Bronze Wire Clip With Strong Column,Zinc alloy gold-plated Port:RJ45 Nickle Pin:50U Gold-Plated
  • INQUIRY   EMAIL
Supports network transmission up to 1G 250MHz, perfect for your Gigabt network
Keystone Jack, Full Shielded, RJ45 to LSA Tool Free Connection
With transparent insulation pieces inside the houing to avoid "short circuit"
568A & 568B wiring color code stickers on the caps and the terminal body -Easy installation

Specifications:
Module:Cat6A
Color: Silver
Material:Phosphor Bronze Wire Clip With Strong Column,Zinc alloy gold-plated
Port:RJ45
Nickle Pin:50U Gold-Plated

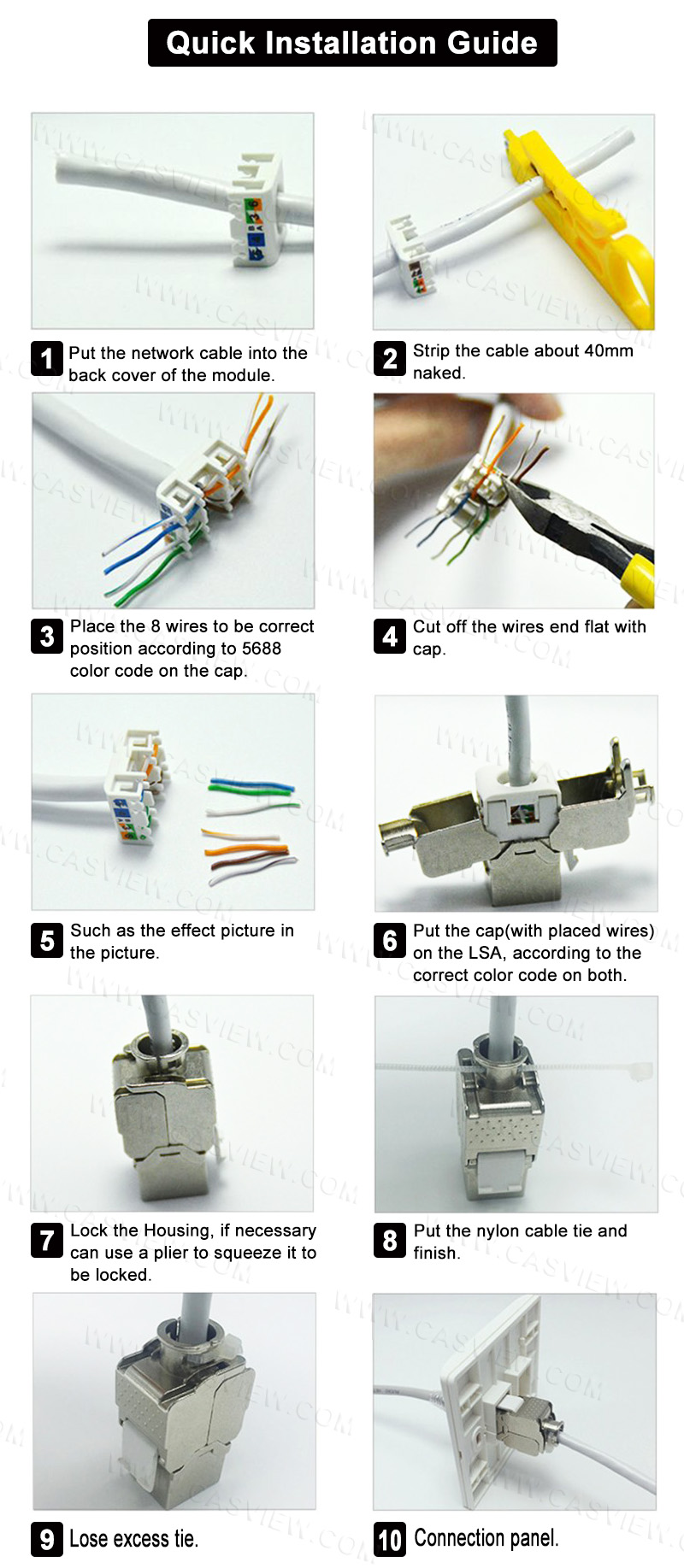

Quick Installation Guide
1.Put the network cable into the back cover of the module
2.strip the cable about 40mm naked
3.place the 8 wires to be correct position according to 5688 color code on the cap
4.Cut off the wires end flat with cap
5.Such as the effect picture in the picture
6.put the cap(with placed wires)on the LSA,according to the correct color code on both
7.Lock the housing,if necessary can use a plier to squeeze it to be locked
8.put the nylon cable tie and finish
9.Lose excess tie
10.Connection panel
